DEYUAN MARINE
CXH1-3
Other
Green
1.05KG
Single-deck Navigation Signal Starboard Light
CXH1-3
CCS ABS GL
High
Exported packing
Deyuan
1-2 n.m
112.5-360 degree
Export Standard

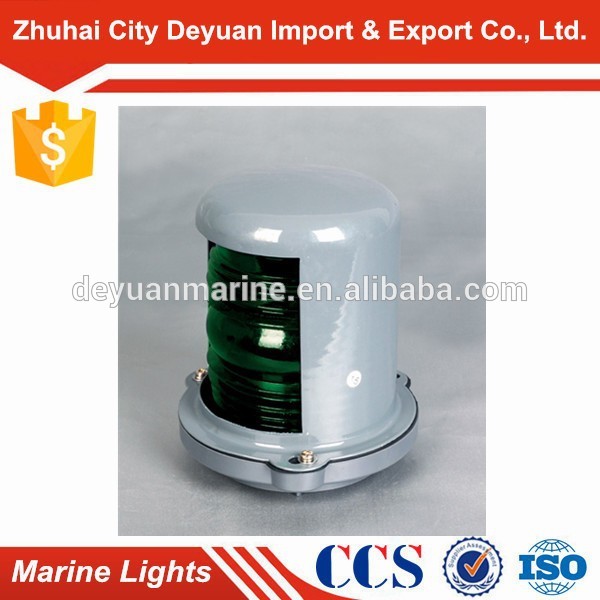

Waterproof Single-deck Navigation Signal Starboard Light
Single-deck Navigation Signal Starboard Light
Application scope:
Applied to the ships with the length less than 12m as lamp signal liaison when night navigation.
Products characteristic:
1.It is convenient to install and replace the bulb, and there are automatic Leakage holes in the bottom.
2.The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting
and shock resistance.
3.The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor ect.
Production authentication:
Approved by CCS(China Classification Society),and ZY of China Fishery Inspection.
Adopt standard:
1.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY
NORMS FOR STEEL SHIPS.
2.Conform to GB/T3028-2012 standard.
Name | Type | Visibility | Level Arc | Color | Weight |
Starboard Light | CXH1-3 | 1n.m | 112.5o | Green | 1.05KGS |
Port Light | CXH2-3 | 1n.m | 112.5o | Red | 1.05KGS |
Masthead Light | CXH3-3 | 2n.m | 225o | White | 1.0KGS |
Stern Light | CXH4-3 | 2n.m | 135o | White/Yellow | 1.05KGS |
All-round- Light | CXH6-3 | 2n.m | 360o | Red/green/white | 0.85KGS |
CXH1-3 Single-deck Navigation Signal Starboard Light
