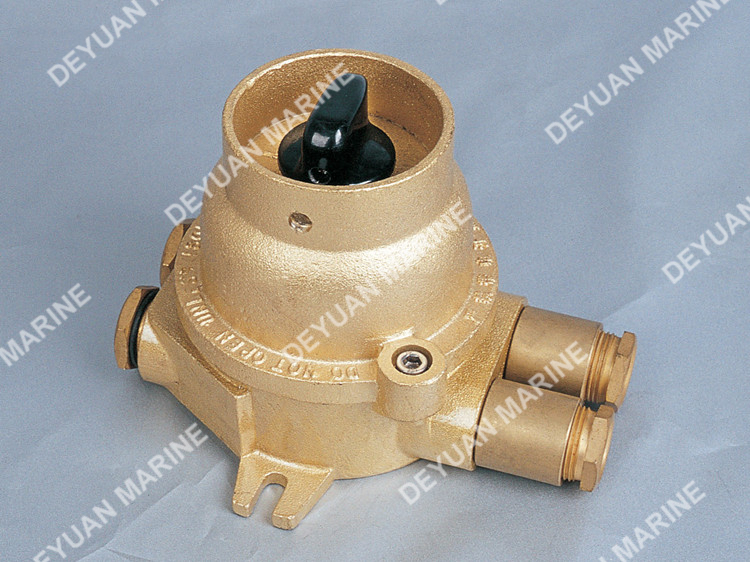

dCHH202-2 Marine Explosion-proof Switch

dCHH202-2 Explosion-proof Switch

dCHH202-2 Explosion-proof Switch

Application:

Fit for electric appliances connecting and circuit breaking in ships, sea petroleum, chemical industry site etc.

Products characteristic:

The shell adopts precision brass casting, it has the feature of fine sealing function and fine electric function.

Production authetication:

This series of products have passed the Examination of National Explosion proof Electrical Test Center, and was approved by “CCS”(China classification society).

Adopt standard:

IEC60079



Code	14105/2	14105/D	14105/3	14105/4
Type	DCHH202-2	DCHH202-2A	DCHH202-3	DCHH202-4
Voltage	380V/16A
Explosion proof mark	Exde II C T6
Protection class	IP56
Material	Brass
Size	134mm*130mm*110mm
Weight	2.25kg	2.25kg	2.27kg	2.27kg



dCHH202-2 Explosion-proof Switch
