DEYUAN MARINE

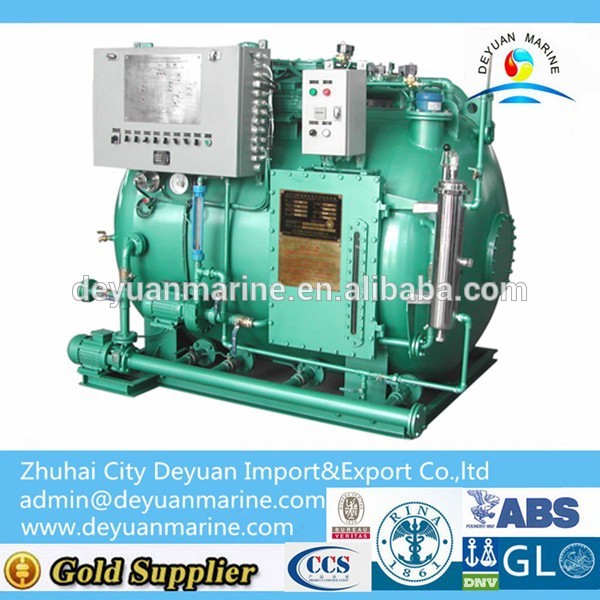

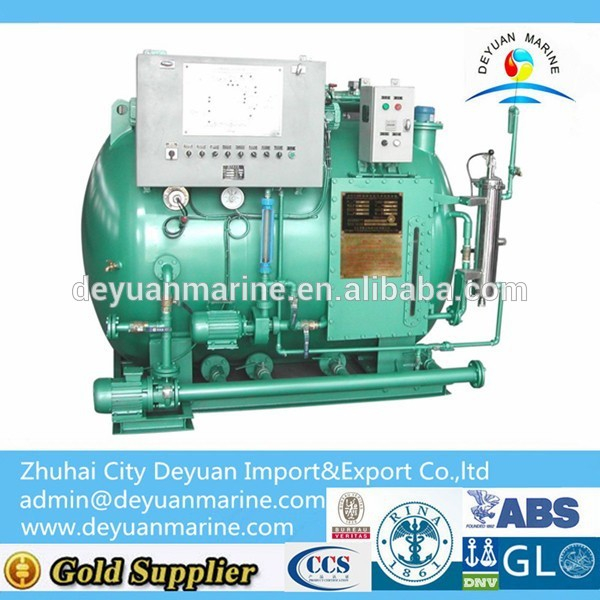

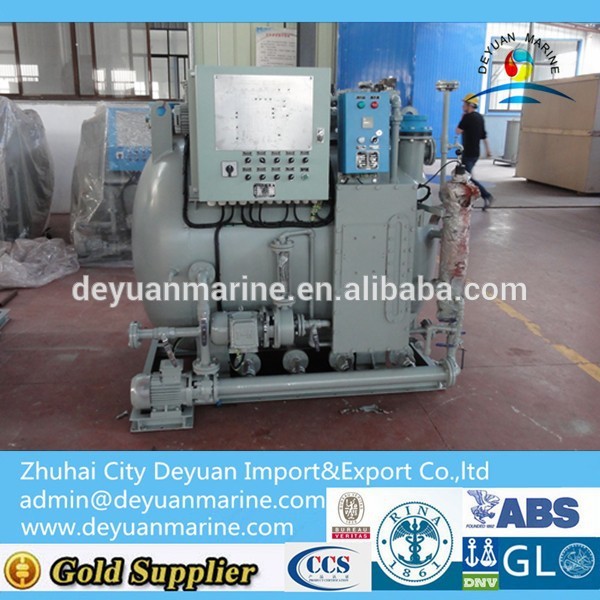

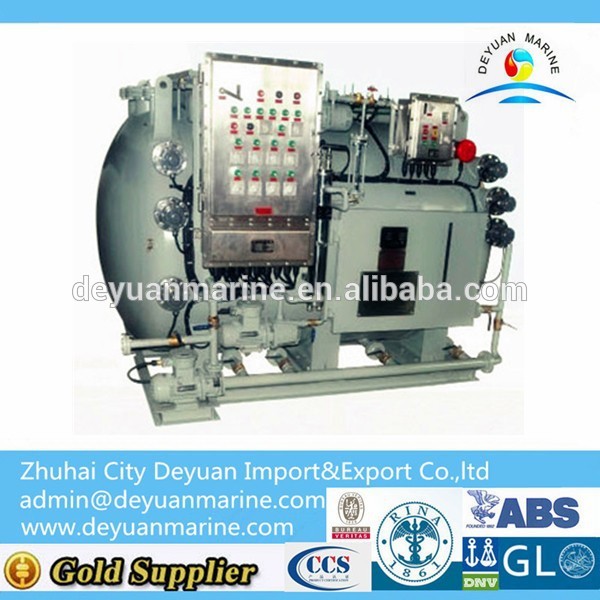

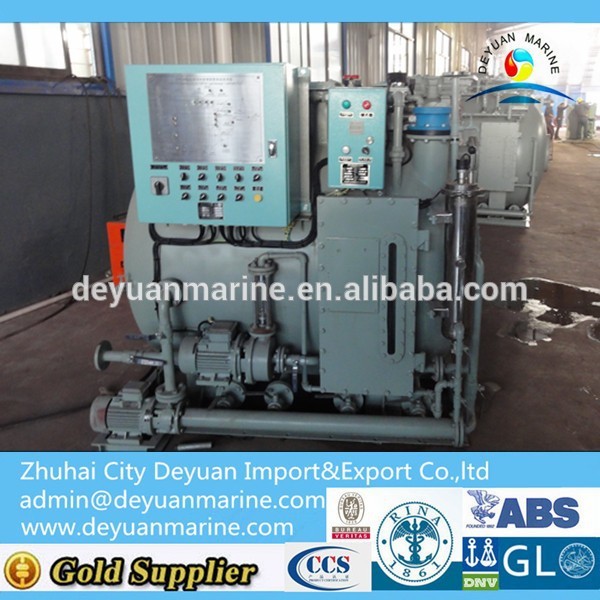

Marine Sewage Treatment Unit
10~250person
IMO MEPC159(55),MARPOL 73/78
CCS,EC,BV,ABS
ships &vessels
Packaging: Wooden case
30 days
Marine Sewage Treatment Unit
Marine Sewage Treatment Plant
1.capacity:10~250person.
2.standard: IMO MEPC159(55),MARPOL 73/78.
3.certificate : CCS,EC,BV,ABS.
4.usage: ships &vessels.
Model | 15 | 20 | 25 | 30 | |||
Load | Average load L/d | 1190 | 1540 | 1890 | 2310 | ||
| Peak load L/h | 149 | 193 | 237 | 289 | ||
| Organic load kgBOD5/d | 0.595 | 0.77 | 0.945 | 1.155 | ||
Rated capacity(P) | 15 | 20 | 25 | 30 | |||
Max capacity(P) | 17 | 22 | 27 | 33 | |||
Electricity | AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ | ||||||
Power(KW) | 1.5 | 1.5 | 1.5 | 1.5 | |||
External dimensions L*W*H(mm) | 1550× 1400× 1600 | 1650× 1400× 1600 | 1850× 1500× 1635 | 1950× 1500× 1635 | |||
Weight
| Dry weight (Kg)
| 1150 | 1200 | 1250 | 1350 | ||
| Wet weight (Kg)
| 2600 | 2933 | 3210 | 3928 | ||
