DEYUAN MARINE
Sewage Treatment Plant
Ships &Vessels.
IMO MEPC159(55),MARPOL 73/78.
CCS,EC,BV,ABS.
Standard Export Packing
20~30Days

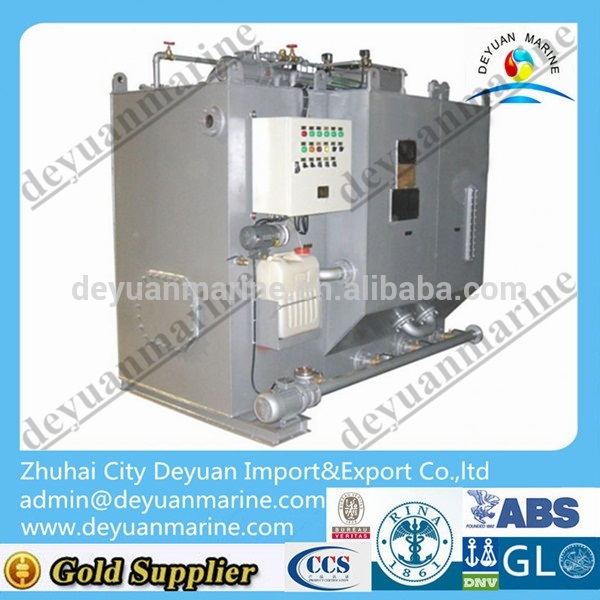

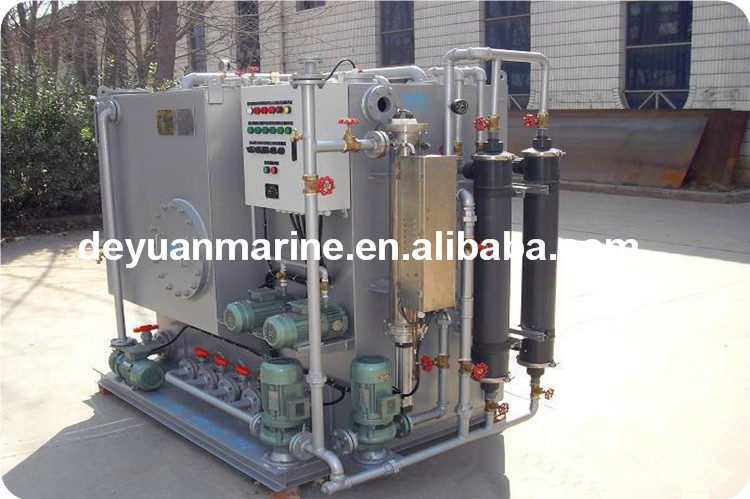

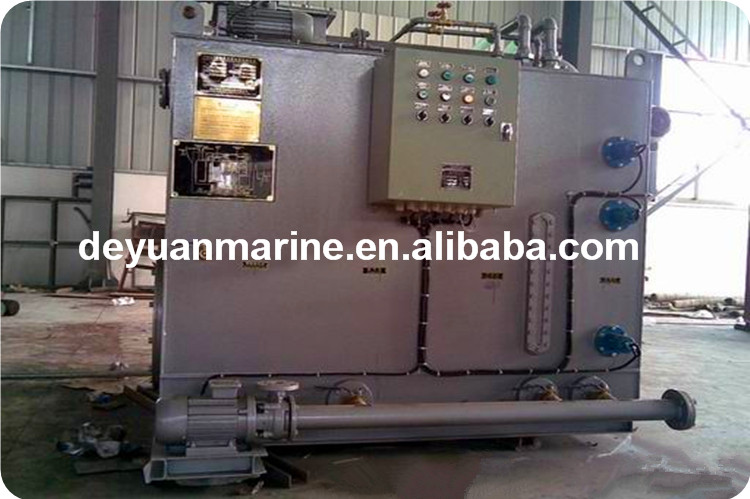

SWCB Series Biochemical Sewage Treatment Plant
SWCB Series Biochemical Sewage Treatment Plant
Application:
The plant is applicable to treat the sewage from the toilets on ships to satisfy international standards for effluent discharge. The plant can be used for sterilizing grey water on ships as well.
The plant adopts the principle of traditional aeration and contact oxidization biochemical treatment and chlorine disinfection, using activated sludge and soft stuffing medium, Due to the air pump stop and start occasionally, it can solve the nitration problem and overcome the sludge expansion caused by thread-like bacteria, which is also called “cancer” in traditional continuous aeration treatment plant.
The specification and engineering structure are complied with the requirement of National Standard GB10833-89 (Marine Sewage Treatment system specification). The effluent from SWCB also meet the discharge standard requirement of IMO MEPC 2(VI). Meanwhile, it has obtained the Type Approval Certificate from CCS and IMO circular.
SWCB Series Biochemical Sewage Treatment Plant
Model | SWCB | ||||||||||||||||
6 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | |||
Load | Average load | 490 | 840 | 1190 | 1540 | 1890 | 2310 | 3080 | 3780 | 4480 | 6020 | 7700 | 11200 | 14700 | 18200 | 23100 | |
Peak load | 62 | 105 | 149 | 193 | 237 | 289 | 385 | 473 | 560 | 753 | 963 | 1400 | 1838 | 2275 | 2888 | ||
Organic load | 0.245 | 0.42 | 0.595 | 0.77 | 0.945 | 1.155 | 1.54 | 1.89 | 2.24 | 3.01 | 3.85 | 5.6 | 7.35 | 9.10 | 11.55 | ||
Rated capacity (P) | 6 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | ||
Max capacity(P) | 7 | 12 | 17 | 22 | 27 | 33 | 44 | 54 | 64 | 86 | 110 | 160 | 210 | 260 | 330 | ||
Electricity | AC 380V50Hz3φ/AC 44060Hz3φ | ||||||||||||||||
Power (KW) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 3.0 | ||
External dimensions Length*width* height | 1000 × 1170 × 1250 | 1300 × 1170 × 1380 | 1450 × 1320 × 1430 | 1500 × 1420 × 1480 | 1550 × 1470 × 1530 | 1650 × 1570 × 1680 | 1750 × 1670 × 1880 | 2000 × 1770 × 1850 | 2100 × 1920 × 1880 | 2500 × 2020 × 1930 | 2800 × 2200 × 2080 | 3200 × 2350 × 2250 | 3500 × 2750 × 2250 | 3800 × 2850 × 2250 | 4300 × 3150 × 2250 | ||
Weight | Dry weight (Kg) | 900 | 1050 | 1150 | 1200 | 1250 | 1350 | 1500 | 1750 | 1950 | 2150 | 2900 | 3800 | 4050 | 5000 | 6000 | |
Wet weight (Kg) | 1580 | 2100 | 2600 | 2933 | 3210 | 3928 | 4689 | 5665 | 6486 | 8100 | 10400 | 14680 | 18330 | 22100 | 28172 | ||
Discharge standard | BOD550mg/LSS50mg/LColiform250/100mlPH6∼9 | ||||||||||||||||
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Holly
E-mail: sales6[at]deyuanmarine[dot]com
Skype: marinesales8
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Web: http://www.deyuanmarine.com
