SWCB Sewage Treatment Plant Biochemical Sewage Treatment Separator

  • Guangdong, China (Mainland)

  • DEYUAN MARINE

  • Sewage Treatment Plant

  • CCS,EC,BV,ABS.

  • IMO MEPC159(55),MARPOL 73/78.

  • Ships &Vessels.

  • Standard Export Packing

  • 20~30Days

Specifications

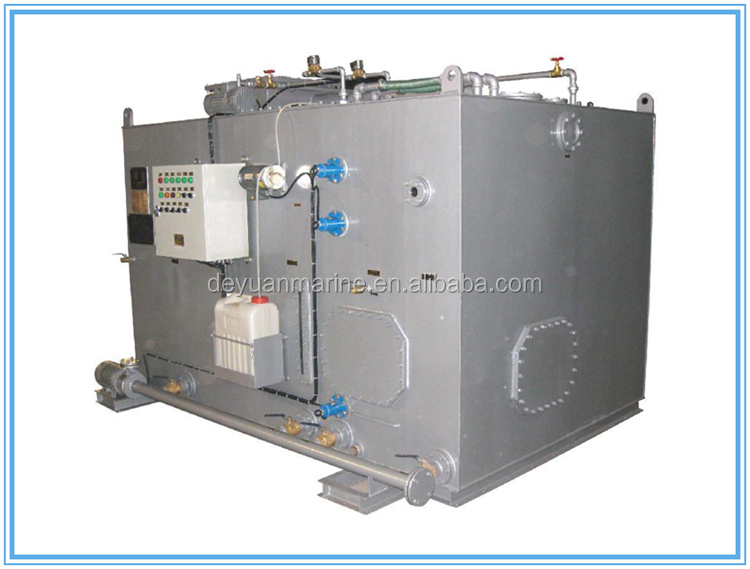

SWCB Sewage Treatment Plant Biochemical Sewage Treatment Separator
1.Selling well all over the world.
2.Competitive price.

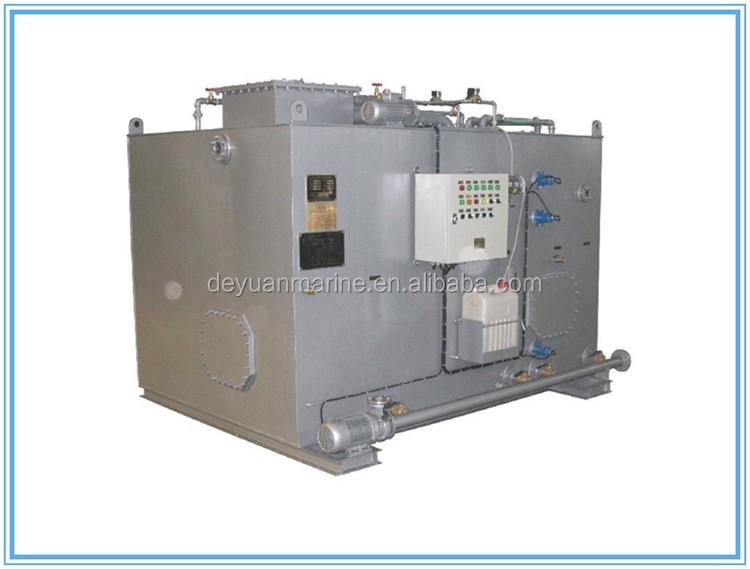

SWCB Sewage Treatment Plant Biochemical Sewage Treatment Separator

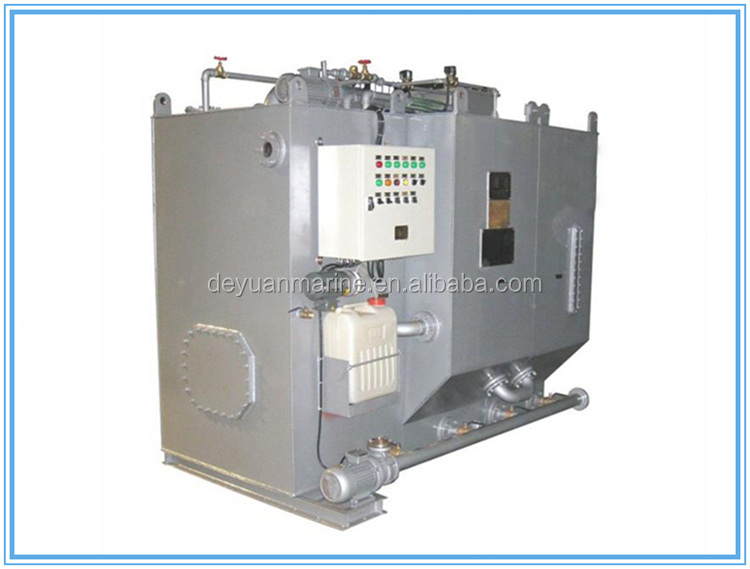

SWCB Sewage Treatment Plant Biochemical Sewage Treatment Separator

Principle Description:

The SWCB series unit has four parts: aeration tank, contact oxidizing tank, sediment tank and disinfection tank.

In the 1st stage aeration tank, the activated sludge mainly consisting of aerobic bacteria form sticky flock to absorb the  organic substance, break it into carbon dioxide and water under the condition of aerating and produce new activated sludge  in the meantime. Soft film stuffing is hanged in the 2nd stage contact oxidizing compartment, the organic substance is further  digested. The active sludge sediment accumulated in the setting tank is to be returned to the aeration tank for reproducting  seeds and retreating.

The clear liquid is then led into the chlorination tank, and the remaining bacteria is killed by chlorine, the resulting  harmless liquid is discharged overboard by discharge pump.





Model

SWCB

6

10

15

20

25

30

40

50

60

80

100

150

200

250

300

Load

Average load

490

840

1190

1540

1890

2310

3080

3780

4480

6020

7700

11200

14700

18200

23100

Peak load

62

105

149

193

237

289

385

473

560

753

963

1400

1838

2275

2888

Organic load

0.245

0.42

0.595

0.77

0.945

1.155

1.54

1.89

2.24

3.01

3.85

5.6

7.35

9.10

11.55

Rated capacity (P)

6

10

15

20

25

30

40

50

60

80

100

150

200

250

300

Max capacity(P)

7

12

17

22

27

33

44

54

64

86

110

160

210

260

330

Electricity

AC 380V50Hz3φ/AC  44060Hz3φ

Power (KW)

1.5

1.5

1.5

1.5

1.5

1.5

1.5

2.0

2.0

2.5

2.5

3.0

3.0

3.0

3.0



External dimensions

Length*width* height

1000

×

1170

×

1250

1300

×

1170

×

1380

1450

×

1320

×

1430

1500

×

1420

×

1480

1550

×

1470

×

1530

1650

×

1570

×

1680

1750

×

1670

×

1880

2000

×

1770

×

1850

2100

×

1920

×

1880

2500

×

2020

×

1930

2800

×

2200

×

2080

3200

×

2350

×

2250

3500

×

2750

×

2250

3800

×

2850

×

2250

4300

×

3150

×

2250

Weight

Dry weight

(Kg)

900

1050

1150

1200

1250

1350

1500

1750

1950

2150

2900

3800

4050

5000

6000

Wet weight

(Kg)

1580

2100

2600

2933

3210

3928

4689

5665

6486

8100

10400

14680

18330

22100

28172

Discharge standard

BOD550mg/LSS50mg/LColiform250/100mlPH6∼9
