Chongqing, China (Mainland)
Deyuan
Grade 2, Grade 3
Welded Chain
Marine Mooring
Alloy
Standard
Black Painted or Hot Dip Galvanized
Nude Packing or Wooden Case
15-30 days

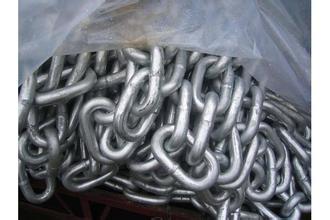

17.5mm Grade 2 Studless or Stud Link Anchor Chain
Material: CM490
Outside Length: 105mm
Outside Width: 63mm
Proof Load: 127KN
Breaking Load: 179kn
Weight: 186kgs/shot
Main Speciication
Chain Diameter mm | Proof Load | Breaking Load | Chain Diameter mm | Minimum Weight Kg per lenght of 27,5 m | ||
Grade 2 kN | Grade 3 kN | Grade 2 Kn | Grade 3 kN | |||
16 | 107 | 150 | 150 | 216 | 16 | 160 |
17.5 | 127 | 179 | 179 | 256 | 17.5 | 190 |
19 | 150 | 211 | 211 | 301 | 19 | 225 |
20.5 | 175 | 244 | 244 | 349 | 20.5 | 265 |
22 | 200 | 280 | 280 | 401 | 22 | 300 |
24 | 237 | 332 | 332 | 476 | 24 | 360 |
26 | 278 | 389 | 389 | 556 | 26 | 420 |
28 | 321 | 449 | 449 | 642 | 28 | 490 |
30 | 368 | 514 | 514 | 735 | 30 | 565 |
32 | 417 | 583 | 583 | 833 | 32 | 635 |
38 | 581 | 812 | 812 | 1160 | 38 | 895 |
40 | 640 | 896 | 896 | 1280 | 40 | 995 |
42 | 703 | 981 | 981 | 1400 | 42 | 1100 |
44 | 769 | 1080 | 1080 | 1540 | 44 | 1200 |
48 | 908 | 1280 | 1280 | 1810 | 48 | 1440 |
50 | 981 | 1370 | 1370 | 1960 | 50 | 1560 |
52 | 1060 | 1480 | 1480 | 2110 | 52 | 1675 |
54 | 1140 | 1590 | 1590 | 2270 | 54 | 1820 |
56 | 1220 | 1710 | 1710 | 2430 | 56 | 1935 |
58 | 1290 | 1810 | 1810 | 2600 | 58 | 2075 |
60 | 1380 | 1940 | 1940 | 2770 | 60 | 2220 |
62 | 1470 | 2060 | 2060 | 2940 | 62 | 2365 |
64 | 1560 | 2190 | 2190 | 3130 | 64 | 2550 |
66 | 1660 | 2310 | 2310 | 3300 | 66 | 2695 |
68 | 1750 | 2450 | 2450 | 3500 | 68 | 2890 |
70 | 1840 | 2580 | 2580 | 3690 | 70 | 3030 |
73 | 1990 | 2790 | 2790 | 3990 | 73 | 3290 |
76 | 2150 | 3010 | 3010 | 4300 | 76 | 3555 |
78 | 2260 | 3160 | 3160 | 4500 | 78 | 3755 |
81 | 2410 | 3380 | 3380 | 4820 | 81 | 4035 |
84 | 2580 | 3610 | 3610 | 5160 | 84 | 4395 |
87 | 2750 | 3850 | 3850 | 5500 | 87 | 4760 |
90 | 2920 | 4090 | 4090 | 5840 | 90 | 5005 |
92 | 3040 | 4260 | 4260 | 6080 | 92 | 5200 |
95 | 3230 | 4510 | 4510 | 6440 | 95 | 5570 |
97 | 3350 | 4680 | 4680 | 6690 | 97 | 5760 |
100 | 3530 | 4940 | 4940 | 7060 | 100 | 6130 |
102 | 3660 | 5120 | 5120 | 7320 | 102 | 6505 |
Stud Link Anchor Chain
Studless Link Anchor Chain
For more details, please feel free to contact us.
