DEYUAN MARINE
JCY26-1
Other
110V/60Hz 220V/50Hz 220V/60Hz
G13
IP56
7.2KG
1*20W
4.75μF
Export Standard
IP56 20W Marine Fluorescent Pendant Light JCY26-1
The scope of application:
1.Fit for illumination of water dripping,water spattering,water coagulating place in ships,such as oven cabin,tunnel,pipeline and weather deck etc.
2.The environmental temperature for work is -20℃~+55℃.
Products characteristic:
1.he shell adopts good quality steel plate tensioned,lampshade adopts injection of PC,and has the seal structure.
2.In order to prevent from electric shocking,equipped with a copper earthing rod with the mark in and out the lights.
3.Plug in type lamp holder,equipped wiring terminal inside,convenient to connect.
4.The lamp equipped B15 lamp holder,used for 24V/15W emergency bulb,the edge of lampshade marks the marking,remark clear that need
the emergency device when order.
5.Equipped compensating capacitance inside the lamp,also has the good effect of start.
Adopt standard:
Conform to JISF8008-2002 standard and GRADE ENTRY NORMS FOR STEEL SHIPS.
Type | Power | Voltage | Power factor | Lamp holder | Cable outside diameter | Protection class | Weight | Compensating capacitance |
JCY26-1 | 1*20W | 110V/60Hz 220V/50Hz 220V/60Hz | >0.85 | G13 | Φ12-Φ16 | IP56 | 7.2Kg | 4.75μF |

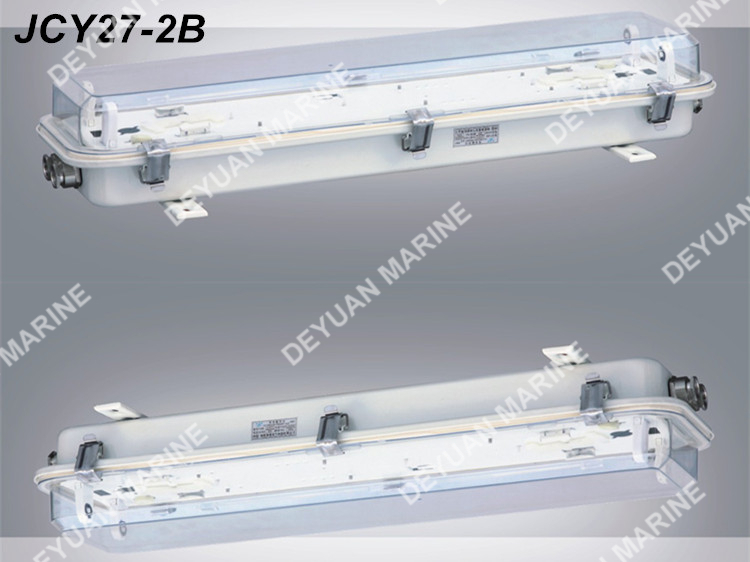

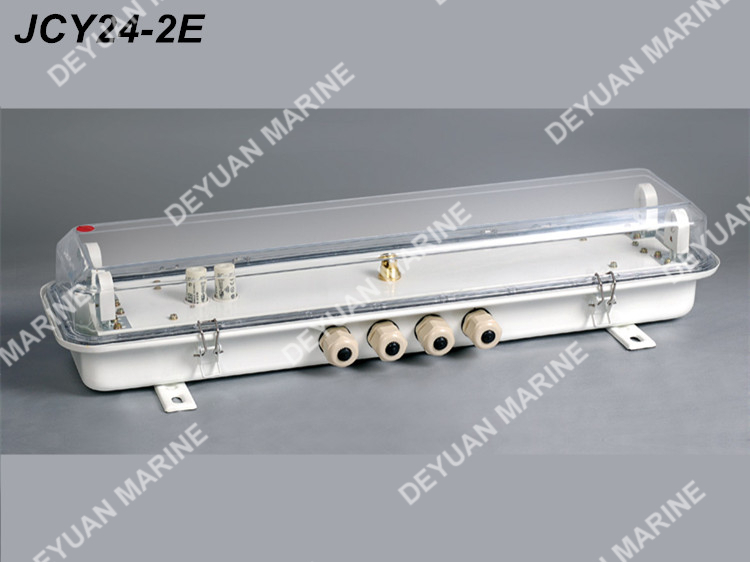

Pictures of series Fluorescent Pendant Light
