Guangdong, China (Mainland)
DEYUAN MARINE, Deyuan Brand
CYZ
Centrifugal Pump, Centrifugal Pump
Single-stage Pump
Air Pump
Electric, Electric
Standard
Diesel
Low Pressure, High Pressure
Fire
two year
Cast iron ,Stainless steel, Alloy steel etc
24V
16 - 21A
CE
3501 - 4500GPH
Standard export plywood case

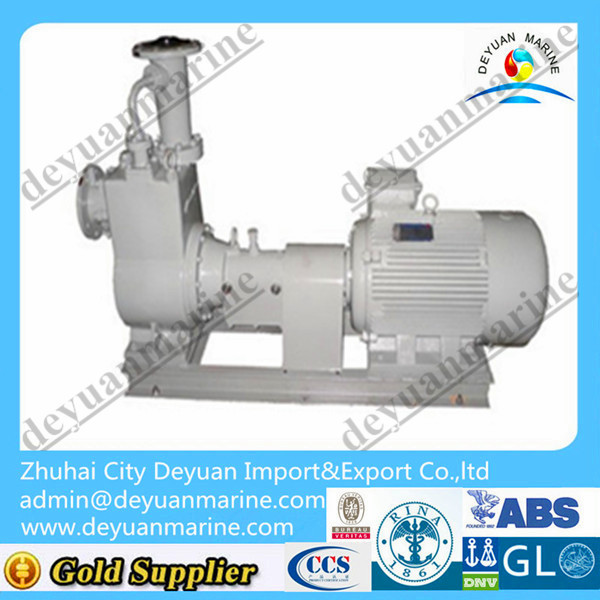

25-30M3/H CYZ Marine Cast Iron Centrifugal Pump With CCS Approval
Product standard:CWY-type marine diesel emergency fire pump is developed in accordance with relevant provisions of the
rules and regulations for the Construction of sea-going steal ships2009,issued by China Classification society (CCS),
and the International Convention on the safety of Life at sea
Application:It is mainly applied in emergency fire protection for vessels,and additionally,in industrial and mining enterprises,
ports and docks,warehouse or freight yard etc.
Product features: The pump integrates widely acclaimed features such as light weight,small size,flexibility in moving,rapid starting,
rapid discharge,large capacity of fuel tank,anti-corrosion,reliability and ease of maintenance etc
CSL Centrifugal Pump
Portable Sliding vane pump priming | |||||
Type | Capacity (m3/h) | Head(m) | Speed (r/min) | Suction head m | Time of discharge (s) |
65CWY-30 | 25 | 30 | 3600 | 6~7 | ≤35 |
65CWY-40 | 30 | 40 | 3600 | 6~7 | ≤35 |
Type | Diesel engine | Weight kg | Diameter of discharge mm | ||
Type | Power( kg) | ||||
65CWY-30 | KM186F | 5.7 | 98/83 | 65/50 | |
65 CWY-40 | KM186F | 5.7 | 100/85 | 65/50 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
25-30M3/H CYZ Marine Cast Iron Centrifugal Pump With CCS Approval
Product standard:CWY-type marine diesel emergency fire pump is developed in accordance with relevant provisions of the
rules and regulations for the Construction of sea-going steal ships2009,issued by China Classification society (CCS),
and the International Convention on the safety of Life at sea
Application:It is mainly applied in emergency fire protection for vessels,and additionally,in industrial and mining enterprises,
ports and docks,warehouse or freight yard etc.
Product features: The pump integrates widely acclaimed features such as light weight,small size,flexibility in moving,rapid starting,
rapid discharge,large capacity of fuel tank,anti-corrosion,reliability and ease of maintenance etc
CSL Centrifugal Pump
Portable Sliding vane pump priming | |||||
Type | Capacity (m3/h) | Head(m) | Speed (r/min) | Suction head m | Time of discharge (s) |
65CWY-30 | 25 | 30 | 3600 | 6~7 | ≤35 |
65CWY-40 | 30 | 40 | 3600 | 6~7 | ≤35 |
Type | Diesel engine | Weight kg | Diameter of discharge mm | ||
Type | Power( kg) | ||||
65CWY-30 | KM186F | 5.7 | 98/83 | 65/50 | |
65 CWY-40 | KM186F | 5.7 | 100/85 | 65/50 |
