Guangdong, China (Mainland)
DEYAUN MARINE
CLH Series
Electromagnetic Pump
Single-stage Pump
Water
Electric
Standard
Electric
Low Pressure
Maritime
CLH
Deyuan
CCS ABS etc
50hz,3phase,380v
High
Vertical centrifugal pump
Wooden case or as required

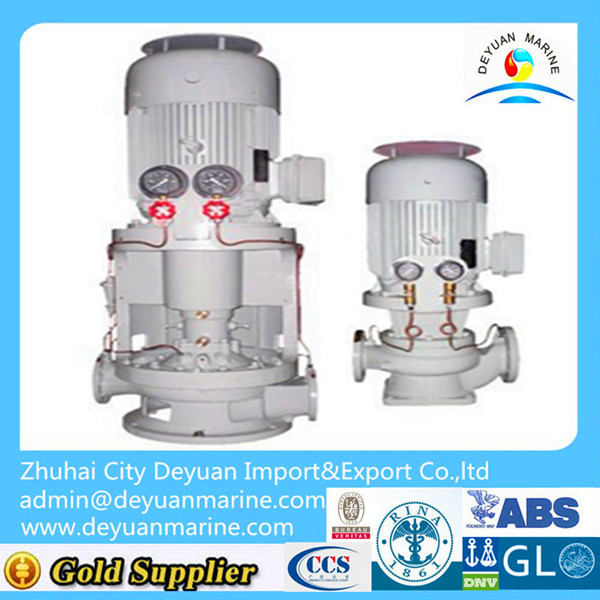

3-30M3/H Marine vertical centrifugal bilge pump with CCS certificate
CLH series marine vertical centrifugal pump
CLH series marine pumps are used at cabin bottom to cool water and fight fire.It is able to carry sea water under 80degrees.Fresh water and other non-eroding liquid.
Type | Main technical parameter (50hz,3phase,380v) | Motor power | ||||
Capacity (m3/h) | Head (m) | Speed R/min | NPSHR m | Shaft power kw | ||
25CLH-6.5Z | 3 | 8 | 2900 | 4 | 0.16 | 0.75 |
40CLH-5Z | 10 | 30 | 2900 | 4 | 1.82 | 2.2 |
40CLH-3.5Z | 5 | 30 | 2900 | 4 | 1.26 | 1.5 |
40CLH-3Z | 10 | 50 | 2900 | 2.8 | 3.24 | 4 |
40CLH-2.5Z | 10 | 65 | 2900 | 3 | 4.66 | 5.5 |
40CLH-2Z | 5 | 50 | 2900 | 2.8 | 2.28 | 3 |
50CLH-7Z | 20 | 30 | 2900 | 3 | 2.47 | 4 |
50CLH-7AZ | 18 | 25 | 2900 | 3 | 1.92 | 3 |
50CLH-5Z | 20 | 45 | 2900 | 4 | 4.1 | 5.5 |
50CLH-4.5Z | 20 | 50 | 2900 | 3 | 4.54 | 5.5 |
50CLH-3.5Z | 20 | 65 | 2900 | 3.5 | 8.85 | 11 |
65CLH-8.5Z | 30 | 30 | 2900 | 3 | 4.02 | 5.5 |
65CLH-8.5AZ | 25 | 26 | 2900 | 3 | 2.95 | 4 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
3-30M3/H Marine vertical centrifugal bilge pump with CCS certificate
CLH series marine vertical centrifugal pump
CLH series marine pumps are used at cabin bottom to cool water and fight fire.It is able to carry sea water under 80degrees.Fresh water and other non-eroding liquid.
Type | Main technical parameter (50hz,3phase,380v) | Motor power | ||||
Capacity (m3/h) | Head (m) | Speed R/min | NPSHR m | Shaft power kw | ||
25CLH-6.5Z | 3 | 8 | 2900 | 4 | 0.16 | 0.75 |
40CLH-5Z | 10 | 30 | 2900 | 4 | 1.82 | 2.2 |
40CLH-3.5Z | 5 | 30 | 2900 | 4 | 1.26 | 1.5 |
40CLH-3Z | 10 | 50 | 2900 | 2.8 | 3.24 | 4 |
40CLH-2.5Z | 10 | 65 | 2900 | 3 | 4.66 | 5.5 |
40CLH-2Z | 5 | 50 | 2900 | 2.8 | 2.28 | 3 |
50CLH-7Z | 20 | 30 | 2900 | 3 | 2.47 | 4 |
50CLH-7AZ | 18 | 25 | 2900 | 3 | 1.92 | 3 |
50CLH-5Z | 20 | 45 | 2900 | 4 | 4.1 | 5.5 |
50CLH-4.5Z | 20 | 50 | 2900 | 3 | 4.54 | 5.5 |
50CLH-3.5Z | 20 | 65 | 2900 | 3.5 | 8.85 | 11 |
65CLH-8.5Z | 30 | 30 | 2900 | 3 | 4.02 | 5.5 |
65CLH-8.5AZ | 25 | 26 | 2900 | 3 | 2.95 | 4 |
