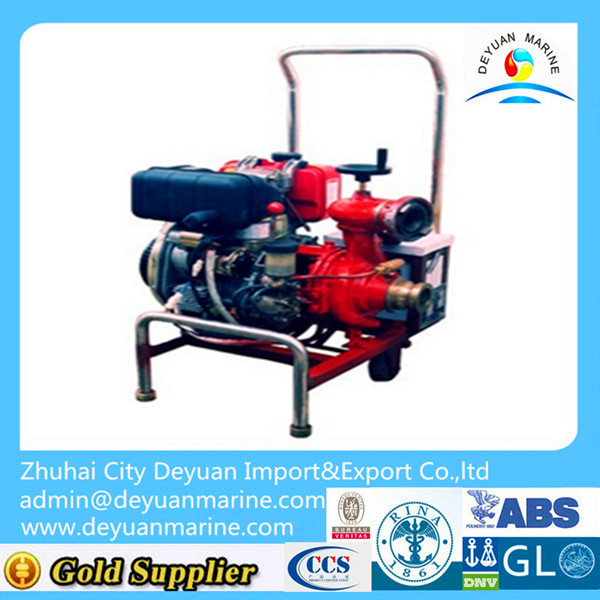

30 m3/h Marine diesel emergency fire pump for CWY
CWY marine diesel emergency fire pump
Product standard:CWY-type marine diesel emergency fire pump is developed in accordance with relevant provisions
of the rules and regulations for the Construction of sea-going steal ships2009,issued by China Classification
society (CCS),and the International Convention on the safety of Life at sea.
Application:It is mainly applied in emergency fire protection for vessels,and additionally,in industrial and mining enterprises,
ports and docks,warehouse or freight yard etc.
Product features: The pump integrates widely acclaimed features such as light weight,small size,flexibility in moving,rapid
starting,rapid discharge,large capacity of fuel tank,anti-corrosion,reliability and ease of maintenance etc.
When the diameter is between 50 to 65,the pump set may be started by manual or electrically started.The diesel engine may be
vertical,single-cylinder,4-stroke and air cooled.
When the diameter is between 80 to 100,the pump set may be started by spring starter or electrically started.The diesel engine
may be verticql,multi-cylinder,4 stroke and water cooled.The outlet may be deployed as required for air cooling.
Portable Sliding vane pump priming | ||||||
Type | Capacity (m3/h) | Head(m) | Speed (r/min) | Suction head m | Time of discharge (s) | |
65CWY-30 | 25 | 30 | 3600 | 6~7 | ≤35 | |
65CWY-40 | 30 | 40 | 3600 | 6~7 | ≤35 | |
Type | Diesel engine | Weight kg | Diameter of discharge mm | |||
Type | Power( kg) | |||||
65CWY-30 | KM186F | 5.7 | 98/83 | 65/50 | ||
65 CWY-40 | KM186F | 5.7 | 100/85 | 65/50 |
