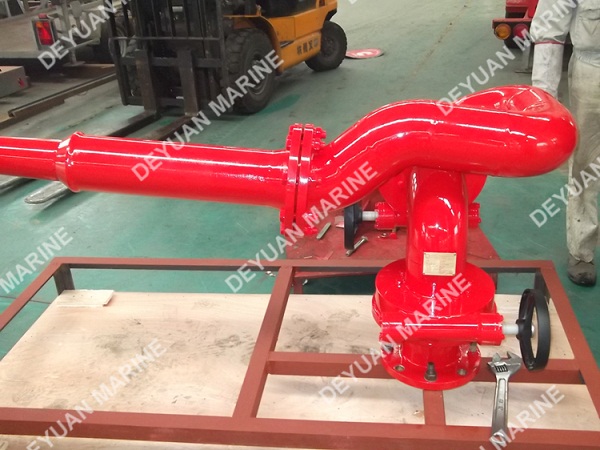

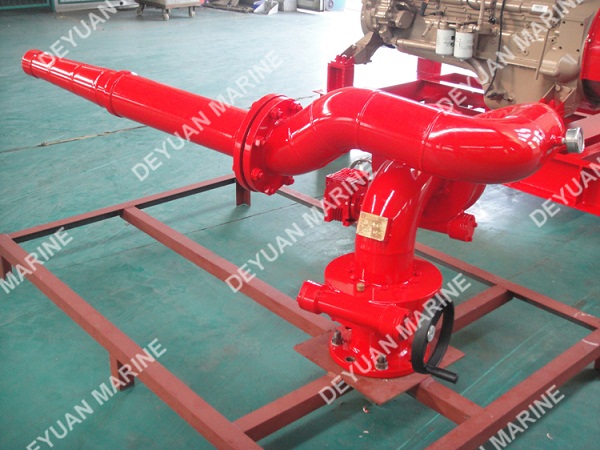

Fire foam monitor/Water Fire Monitor For FiFi system Related products For fire fighting system:
Fire Monitor, External Fire Pump, FiFi system
Materials:
Body: Anti-corrosion aluminum alloy/Copper alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Anti-corrosion aluminum alloy/Copper alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
Descriptions: Produced on requirement
Effective capacity: 9000L/min
The max pressure: 16bar
Inlet: Flange DN150 PN16
Outlet: Flange connection
Optional inlet flange: DN150/ANSI6
Rotation range:
Horizontal: 360° Infinite
Vertical: +75° ~ -45°
Weight: ~75Kg
