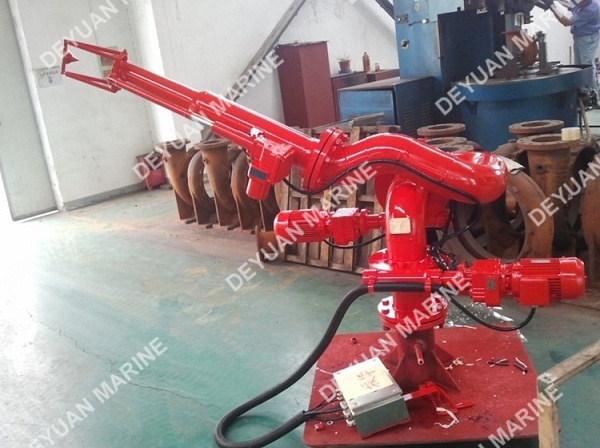

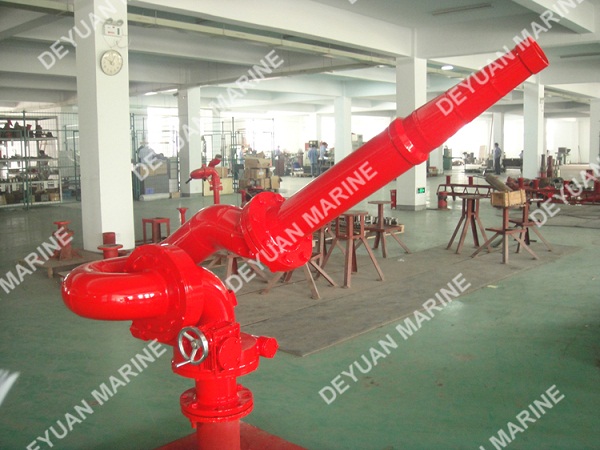

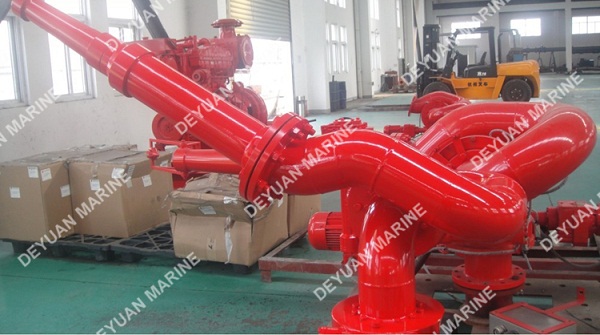

Fire monitor(ss250/HR) Descriptions: Produced on requirement
Effective capacity: 32000L/min
The max pressure: 16bar
Inlet: Flange DN250 PN16
Outlet: Flange connection
Optional inlet flange: DN300/ ANSI10''
Rotation range:
Horizontal: 360° Infinite
Vertical: +75° ~ -45°
Weight: ~220Kg
Materials:
Body: Stainless Steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
Other related products we have Water Fire Monitor, Dry Power Fire Monitor, Foam Fire Monitor, External Fire pump with Cummins Engine etc
