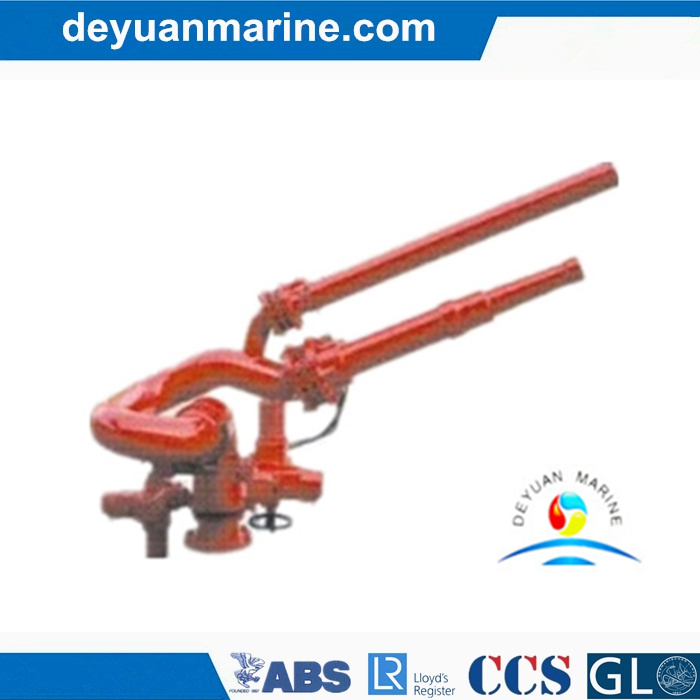

Ship Double Pipe Fire Monitor

Double pipe Fire Monitor Pump

SS150 Double Pipe Monitor Standard Design Parameters (SS150DHR/F)
Descriptions: Produced on requirement
Effective capacity: 1800L/min
The max pressure: 16bar
Inlet: Flange DN150 PN16
Outlet: Flange connection
Optional inlet: DN200 / ANSI6''
Rotation range:
Horizontal: 360° Infinite
Vertical: +75° ~ -45°
Weight: ~165Kg
Materials:
Body: Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Anti-corrosion aluminum alloy/Copper alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
