Guangdong, China (Mainland)
DEYAUN MARINE
Centrifugal Pump
Single-stage Pump
Water
Electric
Standard
Diesel
High Pressure
Maritime
1118
16
1480
5.1
Deyuan
CCS ABS GL
Vertical double-suction centrifugal pump
Bronze Cast iron
Wooden case or as required

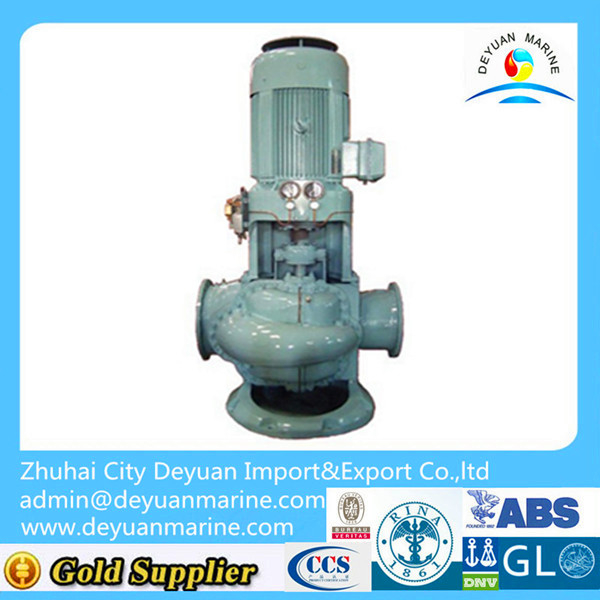

Boat/Ship Vertical double-suction centrifugal pump
Marine vertical double-suction centrifugal pump
It is driven by a marine motor.It can be used to be a ballast pump, fire pump, general service pump and cargoliquid
transported pump for major ships. It widely serves as fresh water and seawater cooling pump, burr pump, ballast pump
and general pump, and used for seawater desalting device and marine pressure cabinet. The transported medium
temperature shall not exceed 80C. It is suitable for water supply and drainage in factory, mining ore, city and power
station as well as for flood control and irrigation works of agricultural fields. AELC self-priming device can be
assembled according to users’ order with additional cost, to achieve self-priming function.
Type | Main technical parameter (50HZ 3phase,380V) | Motor type and power KW | ||||
Capacity (m3/h) | Head m | Speed R/min | NPSHR m | NPSHR m | ||
CSL400-280B | 1118 | 16 | 1480 | 5.1 | 63.3 | Y280S-4H75 |
CSL400-280A | 1450 | 22 | 1480 | 5.7 | 108.6 | Y315M-4H 132 |
CSL400-340B | 1284 | 23.5 | 1480 | 5.5 | 102.7 | Y315M-4H 132 |
CSL400-340A | 1491 | 31.5 | 1480 | 6.8 | 156.0 | Y315L2-4H200 |
CSL400-400B | 1118 | 47.4 | 1480 | 5.5 | 171.9 | Y315L2-4H200 |
CSL400-400A | 1284 | 58 | 1480 | 6 | 238.6 | Y355L1-4H280 |
CSL500-340X | 1700 | 14 | 1480 | 7 | 85.3 | Y315S-4H110 |
CSL500-340B | 1906 | 16.5 | 1480 | 7 | 109.8 | Y315M-4H132 |
CSL500-340A | 2237 | 21 | 1480 | 7 | 164 | Y315L2-4H200 |
CSL500-390B | 2028 | 27.5 | 1480 | 8.6 | 180.8 | Y315L2-4H200 |
CSL500-390A | 2485 | 34 | 1480 | 6.7 | 277.2 | Y315L2-4H315 |
CSL500-440B | 1990 | 34 | 1480 | 6.3 | 219.3 | Y355L2-4H315 |
CSL500-440A | 2485 | 47 | 1480 | 7.2 | 349.4 | Y355M2-4H250 |
CSL600-420A | 2250 | 15 | 980 | 6.5 | 112 | Y355M1-4H220 |
CSL600-510B | 2473 | 22 | 980 | 4.7 | 172.3 | Y315L2-6H132 |
CSL600-510A | 3146 | 24.7 | 980 | 4.7 | 249 | Y355L1-6H315 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
