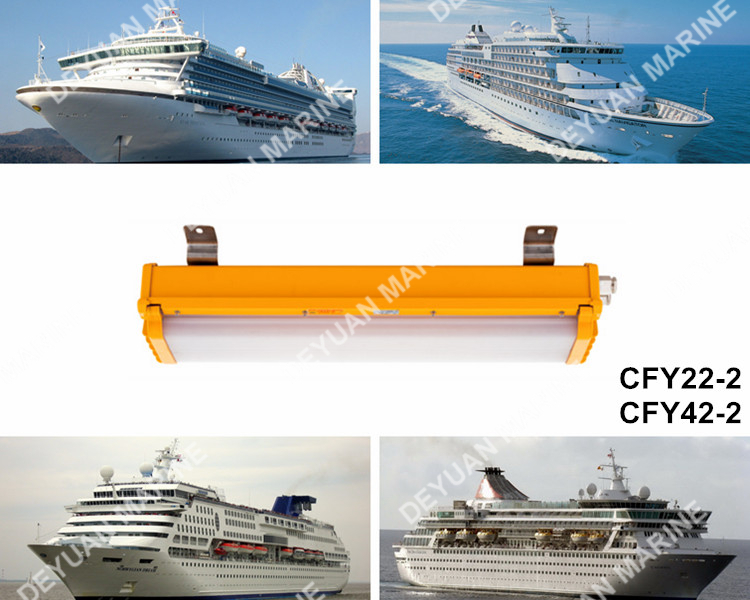

CFY22-2 Marine Explosion-proof Fluorescent Light

CFY22-2 Explosion-proof Fluorescent Light

CFY22-2 Explosion-proof Fluorescent Light

The Scope of application:

Applied to cabin illumination in the hazardous area such as chemical factory,oil refinery,oil and gas plant with explosive gas atmosphere.

Products characteristic:

1.The shell is made with aluminium alloy,and quality white PC lampshade.

2.The external of light overall is fixed with six angle screw,with good sealing and high protection class.

3.The light has two mounting type:Surface and flush mounting,it convenient for customer to choose.
4.The light adopts the quick ex-proof electronic ballast start,with good start effect.

5.Safety increased type and cementing type ex-proof structure.

Adopt standard:

Conform to international IEC standard,GB19510.4, GB3836 and GB12045.





Type	CFY22-2
Explosion-proof Mark	Exemd II C T5
Voltage	220V/50Hz,220V/60Hz,110V/60Hz
Power	2x20W
Lamp Holder	G13
Protection Class	IP54
Cable Diameter	Dia10-12.5mm
Weight	6.8kg





CFY22-2 Explosion-proof Fluorescent Light
