CO2 Fire Extinguishing System

Inquire Add to Basket

  • DY29202

  • Transportable Fire Extinguisher

  • CE, CCS

  • 14.7MPa

  • Deyuan

  • China

  • CO2

  • 50kg

  • Iron and Steel

  • ≤ 0.67kg/L

  • ABS, GL, DNV, BV, CCS Class

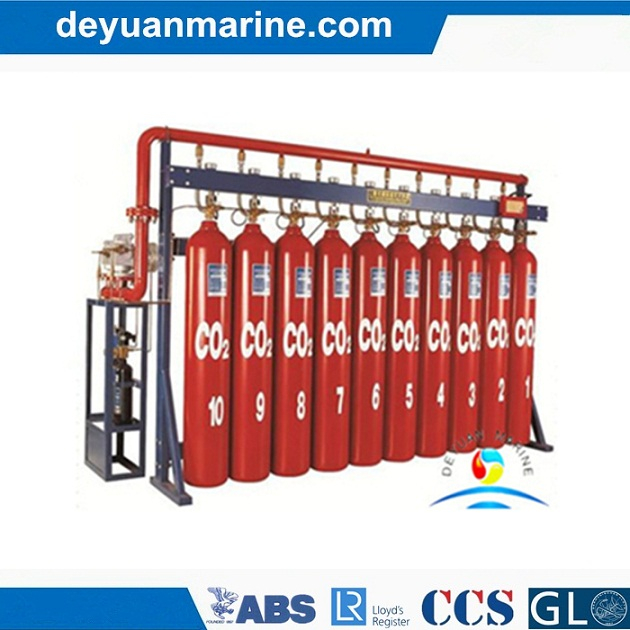

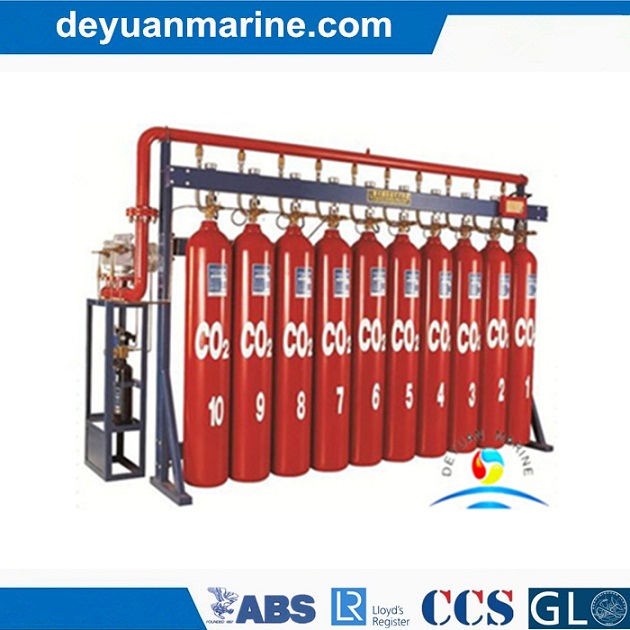

CO2 fire extinguishing system
Low Pressure Water-Base Fire Fighting System

China Deyuan Marine Fitting Co., Ltd are leading supplier of carbon dioxide fire extinguishing system, local water-based fire fighting system, fixed foam fire fighting plant, water spray fire extinguishing system. Pls contact us for more details.
Type fixed
Nominal pressure 14.7Mpa
Cylinder volume CO2 cylinder 40L, 68L
N2 cylinder 4L
CO2 filling rate ≤ 0.67kg/L
Environment condition temperature -10 +50
humidity 93± 3%
Electricity supply Main supply AC220V, 50HZ/440v, 60HZ
Auxiliary supply DC24V, 3A
Power standby ≤ 30w
Working 200w
Operation method manual
pneumatic Remote control
mechanically Local operation
Release delay Mechanical delay 20-40S
Star up air source Gas type N2
Filling pressure 5.9Mpa

CO2 Fire Extinguishing System
CO2 Fire Extinguishing System
CO2 Fire Extinguishing System
