Chongqing, China (Mainland)
DEYUAN
CPJ
Jet Pump
Injection pump
water and mixed liquid
Negative pressure for suction
Standard
liquid flow
High Pressure
Maritime
self-priming and steadily liquid flowing
use nagetive pressure for suction
Wooden Box
25-40days

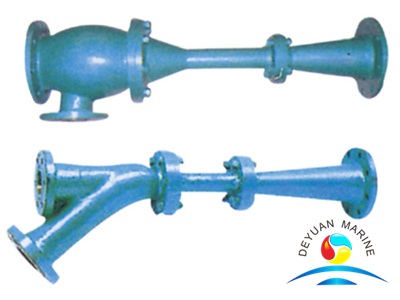

CPJ series marine injection pump
1. High Quality,small size and light weight
2. Fast Delivery
3. Easy maintenance
4. Competitive price
5. Long service life
General description
The pump suction flange axis perpendicular to the pump body axis, convenient installation. Has a self-priming performance, can work continuously steadily. No moving parts, long service life. Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc .
Type explanation
For the type CPJ40-50-65
CP stand for marine injector
J stand for working nozzle figure
40 stand for working water pipe diameter -mm
50 stand for inlet diameter-mm
65 stand for outlet diameter-mm
Performance prarmeter
Type | Capacity | suc'head | working pressure | water consumption | Delivery-pressure |
| m3/h | m | mpa | m3/h | Mpa |
CPJ40-50-65 | 10 | 5 | 1.2 | 15 | 0.25 |
CPJ50-80-80 | 30 | 3 | 0.8 | 30 | 0.12 |
CPJ80-100-100 | 70 | 3 | 0.7 | 56 | 0.1 |
CPJ100-100-125 | 50 | 2.5 | 0.6 | 115 | 0.22 |
CPJ100-125-125 | 100 | 3 | 1 | 110 | 0.2 |
CPJ100-150-150 | 120 | 3 | 1 | 120 | 0.2 |
CPJ125-150-150 | 130 | 5 | 0.9 | 320 | 0.3 |
CPJ125-150-200 | 100 | 7 | 0.7 | 150 | 0.12 |
CPJ125-200-200 | 130 | 5 | 1 | 250 | 0.3 |
CPJ150-200-200 | 300 | 4 | 1.25 | 400 | 0.25 |
CPJ150-200-250 | 300 | 5 | 1.15 | 470 | 0.25 |
CPJ200-200-250 | 170 | 5 | 0.25 | 600 | 0.1 |
CPJ200-250-300 | 600 | 4 | 1.2 | 340 | 0.1 |
CPJ250-250-300 | 250 | 4 | 0.3 | 1050 | 0.15 |
CPJ250-300-350 | 630 | 5 | 1.3 | 750 | 0.25 |
CPJ300-300-350 | 400 | 5 | 0.3 | 1750 | 0.15 |
