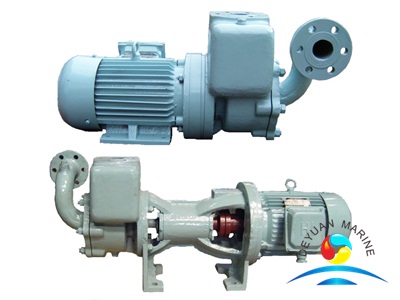

CWX Series Marine Self-Priming Vortex Pump

Inquire Add to Basket

  • China (Mainland)

  • DEYUAN

  • CWX Series

  • Vortex Pump

  • Screw Pump

  • Water

  • Electric

  • Standard

  • Motor

  • Low Pressure

  • Maritime

  • Cast iron pump cast, Bronze impeller, Stainless steel pump shaft

  • less than 80c

  • drinking washing and sanitary use

  • Wooden Box

  • 25-40days

Specifications


1. High Quality, suitable for sea water
2. Material: Casting Iron
3. Fast Delivery
4. Self-priming Pump



CWX Series marine self-priming vortex pump



1. High Quality, suitable for sea water
2. Material: Casting Iron
3. Fast Delivery
4. Self-priming Pump



Application : CWX Series marine self-priming are applicable to pumping fresh  and sea water for drinking washing and sanitary uses onboard the ship.



Specification:

Type Capacity Head Speed NPSH Suc'head Shaft power Efficiency Motor power Remarks
m3 m r/min m m Kw % Kw
1.5CWX-2 3 40 2900 4 6 2 16.3 2.2 direct-coupled
1.5CWX-3 6.5 35 2900 4 6 2.3 26.9 3
1.5CWX-4 10 35 2900 4 6 2.5 38.1 4
1.5CWX-2A 3 40 2900 4 6 2 16.8 2.2 "A" for bracket mounting
1.5CWX-3A 6.5 35 2900 4 6 2.3 26.9 3
1.5CWX-4A 10 35 2900 4 6 2.5 38.1 4
