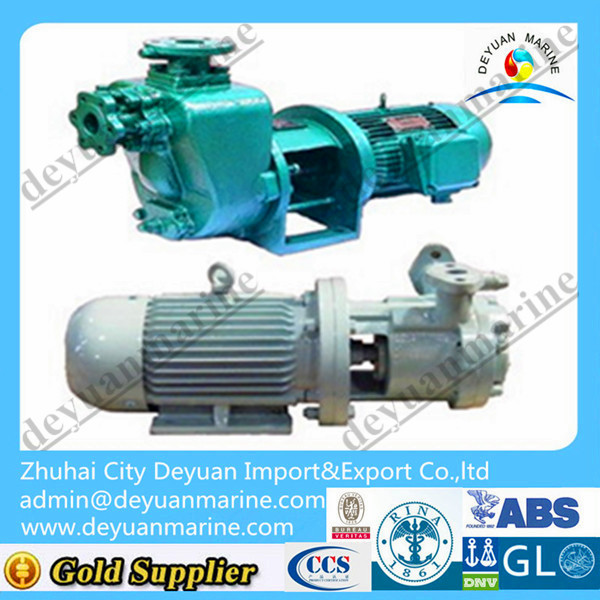

CXZ Cast iron/bronze Marine Self-Priming Peripheral Pump

CWL series marine horizontal centrifugal pump are applicable to fire control,cooling and sanitation and applied to industries,

to city water supply and drain,and also to angricultural and orchard irrigation.

The pump rotates anticlockwise viewed from motor.

CXZ Marine Self-Priming Peripheral Pump

Type	(50HZ,3phase,380v) main technical parameter					Power (kw)
Type	Capacity (m3/h)	Head (m)	Speed R/min	NPSHR (m)	Shaft power(kw)	Power (kw)
32 CWL-4	2	20.2	2900	4.2		1.1
	4	21		4.1	0.74
	4.8	20.9		4.1
32CWL-3	2	31	2900	3.0		1.5
	4	30		2.5	0.99
	4.8	29.2		2.8
40CWL-5	4	22.2	2900	4.4		1.1
	8	21		3.0	0.85
	9.6	20		3.1
40CWL-4	4	32.3	2900	3.6		2.2
	8	30		2.6	1.31
	9.6	28.5		2.5
40CWL-3	4	43	2900	3.0		3
	8	42		2.5	2.13
	9.6	41		2.9
50CWL-6	6	22.2	2900	2.8		1.5
50CWL-6	12	21	2900	2.0	1.16	1.5
