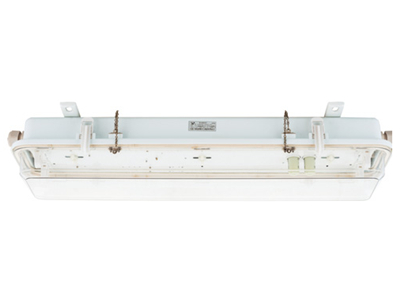

China Marine Fluorescent Pendant Light JCY25-2
Used to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, tunnel pipeline and weather deck etc. The working enviroment temperature is -20°C~+55°C Products Advantage:
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Standards:
1. Confirm to the international regulation for preventing collision at sea
, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Type | JCY25-2P | JCY25-2PE |
| Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz | |
| Power Factor | >0.85 | |
| Lamp Holder | G13 | |
| Cable Diameter | Dia14mm-16mm | |
| Protection Class | IP56 | |
| Power | 2x20W | 2x20W |
| Weight | 4.55kg | 4.55kg |
| Material | Engineering Plastic | |
China Marine Fluorescent Pendant Light JCY25-2
Used to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, tunnel pipeline and weather deck etc. The working enviroment temperature is -20°C~+55°C Products Advantage:
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Standards:
1. Confirm to the international regulation for preventing collision at sea
, 1972 and grade entry norms for steel ships.
2. Confirm to the International Standard IEC60598-1-2008.
3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.
Main Specification:
| Type | JCY25-2P | JCY25-2PE |
| Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz | |
| Power Factor | >0.85 | |
| Lamp Holder | G13 | |
| Cable Diameter | Dia14mm-16mm | |
| Protection Class | IP56 | |
| Power | 2x20W | 2x20W |
| Weight | 4.55kg | 4.55kg |
| Material | Engineering Plastic | |
