New
1500~20000L/h
0.025-0.5Mpa
China (Mainland)
Deyuan Marine
Separating Plant
fuel oil,lubricating oil,etc...
220,380,440,460V
11Kw
1380*900*1447(mm*mm*mm)
1000Kgs
CCS,ISO
Engineers available to service machinery overseas
2.2~22Kw
12 months
standard exporting wooden case
15 days after payment
Marine separator
Marine separator
Installation Notice:
1.Take into consideration the enough space available to maintenance and repair separator before installation.
2.The foundation must be firm, plan and leveling.
3.All the pipes connecting with separator should be flexible.
4.The operation water of the separator must be soft water, the pressure of which is between 0.025MPa and 0. 03MPa.
Marine separator

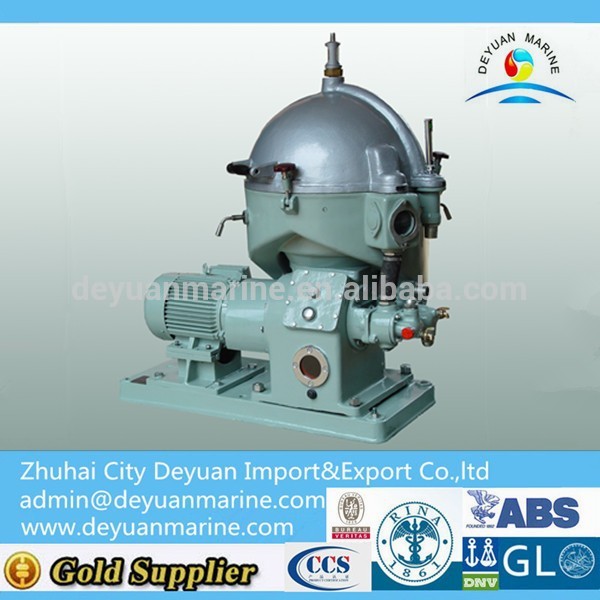

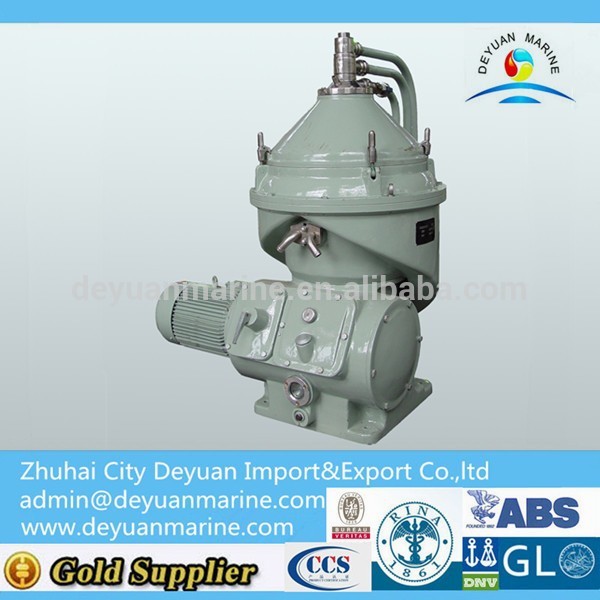

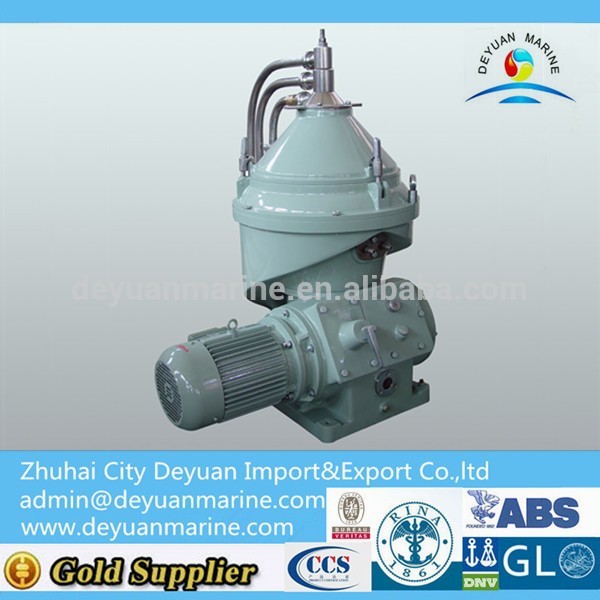

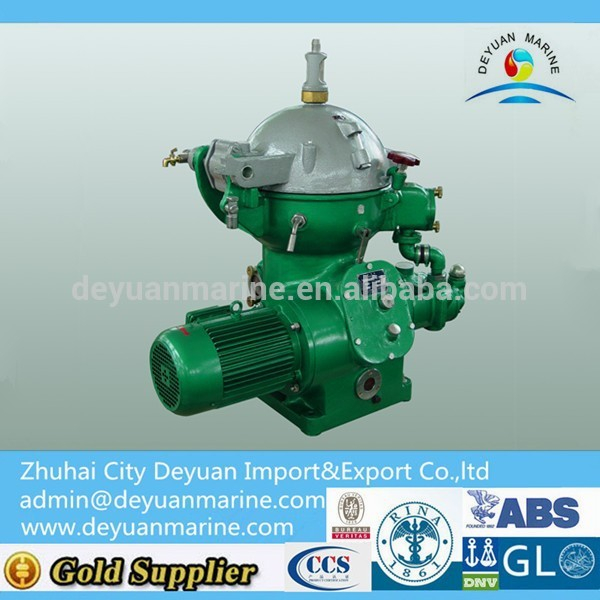

Marine separator is mainly used to remove water and mechanical impurities from fuel oil,lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount od solid particle from liquid.
Type | Max Capacity(L/h) | Motor Power(kW) |
DYR203CD-23 | 1500 | 2.2 |
DYB202DD-21 | 1500 | 2.2 |
DYH204SD-23 | 2000 | 4 |
DYB302DD-21 | 2500 | 3 |
DYH304SD-23 | 3000 | 4 |
DYB203SD-21 | 3500 | 5.5 |
DYH206SD-23 | 4000 | 5.5 |
DYB204SD-21 | 4500 | 7.5 |
DYB205SD-21 | 6000 | 7.5 |
DYB207SD-21 | 8000 | 11 |
DYH509 | 10000 | 15 |
DYB409 | 14000 | 15 |
DYB211 | 20000 | 22 |
