New
Separating Plant
Marine Separator
Guangdong, China (Mainland)
DEYUAN MARINE
Separating Plant
220, 380, 440, 460V
11Kw
1000Kgs
1380*900*1477(mm*mm*mm)
CCS, ISO
12 months
Engineers available to service machinery overseas
1500-20000
2.2-22
Film wrapping+Wooden case
60days after yr payment

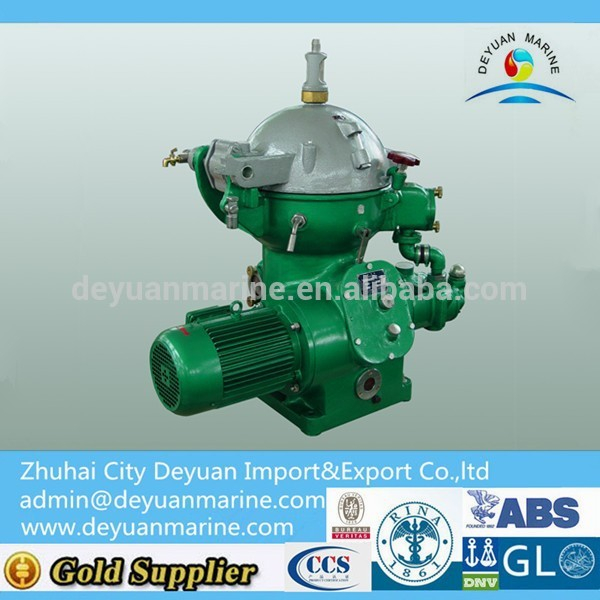

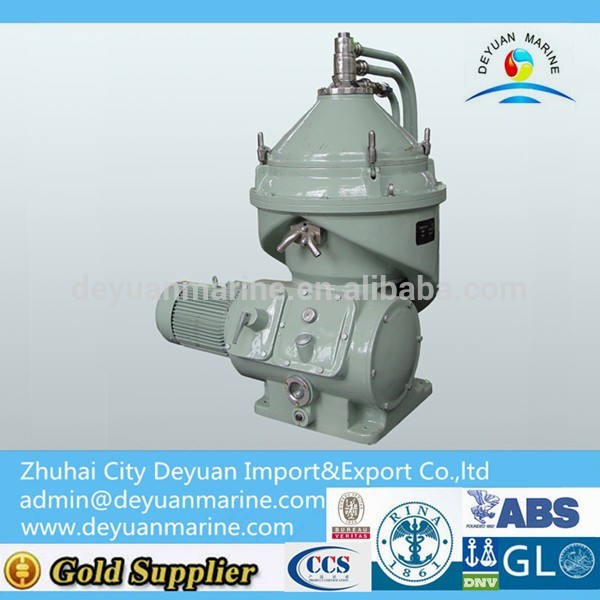

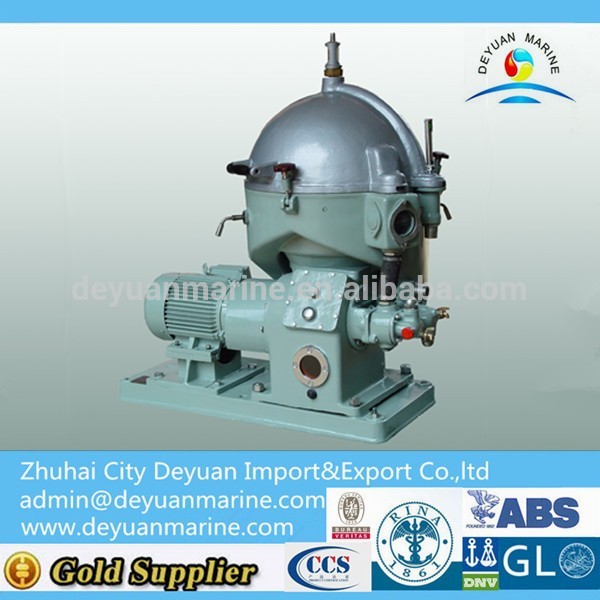

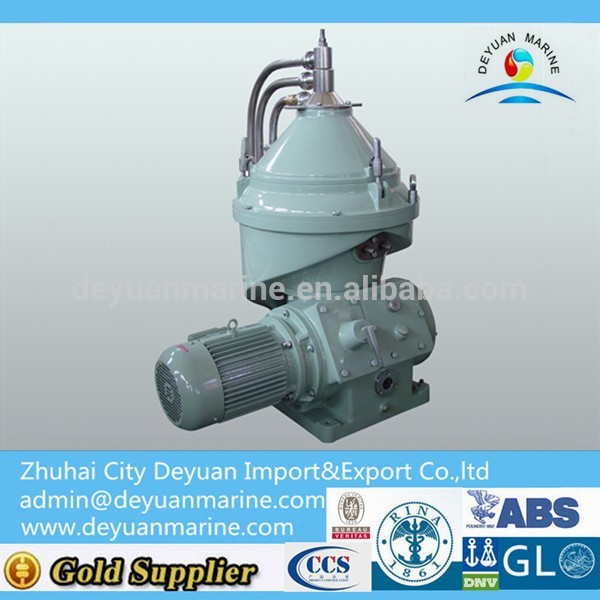

Marine Separator
The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
Marine separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.
The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.
Installation Notice:
1.Take into consideration the enough space available to maintenance and repair separator before installation.
2.The foundation must be firm, plan and leveling.
3.All the pipes connecting with separator should be flexible.
4.The operation water of the separator must be soft water, the pressure of which is between 0.025MPa and 0.03MPa.
Type | Max Capacity(L/h) | Motor Power(kW) |
DYR203CD-23 | 1500 | 2.2 |
DYB202DD-21 | 1500 | 2.2 |
DYH204SD-23 | 2000 | 4 |
DYB302DD-21 | 2500 | 3 |
DYH304SD-23 | 3000 | 4 |
DYB203SD-21 | 3500 | 5.5 |
DYH206SD-23 | 4000 | 5.5 |
DYB204SD-21 | 4500 | 7.5 |
DYB205SD-21 | 6000 | 7.5 |
DYB207SD-21 | 8000 | 11 |
DYH509 | 10000 | 15 |
DYB409 | 14000 | 15 |
DYB211 | 20000 | 22 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Amy
E-mail: sales6[at]deyuanmarine[dot]com
Skype:marinesales8
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: + 86 - 13798955752
Web: http://www.deyuanmarine.com
