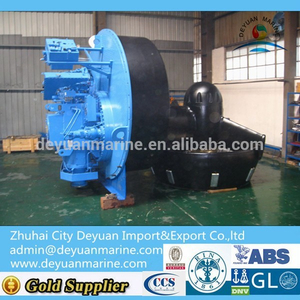

Diesel Or Electric Driven Marine Bow Tunnel Thruster

  • Deyuan Marine

Diesel Or Electric Driven Marine Bow Tunnel Thruster



Tunnel Thruster :

Tunnel Thrusters are Fixed Pitch Propeller or controllable pitch propeller thrusters. The features as follows:
-Superior Strength

Tough and rational structural design has accomplished superior strength ,

Especially strong and durable driving shaft and seal are adopted for longer operation.

-Less Noise and vibration
Employing thicker duct plate, developing new propeller design and so on have achieved

less noise and vibration which follow comfortable living environment on board
-Easy Installation and Periodical Inspection
is especially reduced duct lip and has a structure that it is able to weld anywhere on outer surface of duct for installation,

On the periodical inspection, it is almost

not needed to change parts except seal.
-Various type of driving
Compact new control system can provide easy operation. Customer can choose various configuration of prime mover,

electric motor, diesel engine or hydraulic motor.










Propeller diameter (mm)

Power (KW)

Max thrust (KN)

Propeller type

MTT60

600

20~75

16

FPP

MTT90

900

75~210

33

FPP

MTT110

1100

200~330

46

FPP,CPP

MTT130

1300

310~470

66

FPP,CPP

MTT165

1650

450~760

108

FPP,CPP

MTT185

1850

720~1020

132

FPP,CPP

MTT200

2000

980~1270

165

FPP,CPP

MTT225

2250

1200~1550

235

FPP,CPP

MTT250

2500

1450~2100

326

FPP,CPP

MTT275

2750

2060~2480

378

FPP,CPP

MTT300

3000

2300~2930

462

FPP,CPP
