Marine Controllable Pitched Tunnel Thruster

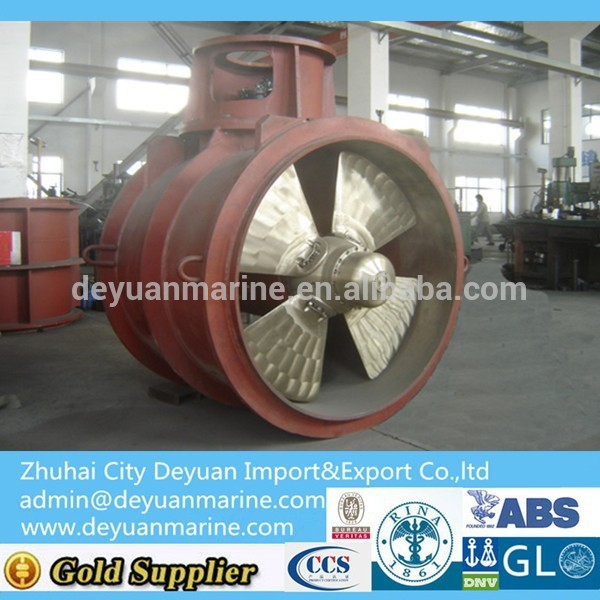

Controllable Pitched Tunnel Thruster
Transverse thrusters are installed in the bow or stern in order to improve manoeuvrability.
Depending on the type of vessel, the range of application for transverse thrusters extends from brief docking and casting-off in ports with a limited number of operating hours every year up to continuous operation under extreme load conditions
in demanding offshore applications with dynamic positioning.
Advantages
1.For extreme load conditions, e.g. in the offshore sector.
2.For continuous and short-time service.
3.Low noise emission.
4.Available with either fixed or controllable-pitch propellers.
5.Compact design due to horizontal, vertical or inclined arrangement of the power input flange.
6.Combinable with diesel, hydraulic or electric drive.
| Propeller diameter (mm) | Power (KW) | Max thrust (KN) | Propeller type |
MTT60 | 600 | 20~75 | 16 | FPP |
MTT90 | 900 | 75~210 | 33 | FPP |
MTT110 | 1100 | 200~330 | 46 | FPP,CPP |
MTT130 | 1300 | 310~470 | 66 | FPP,CPP |
MTT165 | 1650 | 450~760 | 108 | FPP,CPP |
MTT185 | 1850 | 720~1020 | 132 | FPP,CPP |
MTT200 | 2000 | 980~1270 | 165 | FPP,CPP |
MTT225 | 2250 | 1200~1550 | 235 | FPP,CPP |
MTT250 | 2500 | 1450~2100 | 326 | FPP,CPP |
MTT275 | 2750 | 2060~2480 | 378 | FPP,CPP |
MTT300 | 3000 | 2300~2930 | 462 | FPP,CPP |
