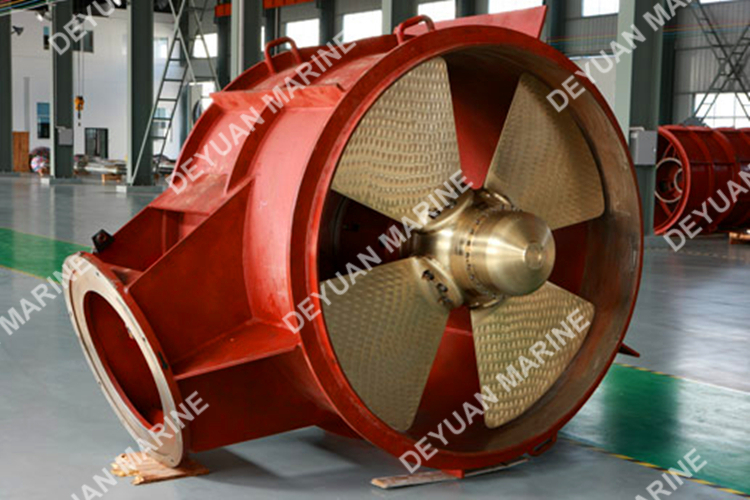

Electric Driven Tunnel Thruster
Electric Driven Tunnel Thruster
*Tunnel thruster type: FPP tunnel thruster/bow thruster
*Driven by engine or by motor,CUMMINS,CAT brand engine
*Propeller diameter available:2000MM
*Propeller material:CU1,CU2,CU3
*Bow thruster max thrust:165KN
*Certificate available:CCS,ABS,DNV,LR,GL
| Propeller diameter (mm) | Power (KW) | Max thrust (KN) | Propeller type |
MTT60 | 600 | 20~75 | 16 | FPP |
MTT90 | 900 | 75~210 | 33 | FPP |
MTT110 | 1100 | 200~330 | 46 | FPP,CPP |
MTT130 | 1300 | 310~470 | 66 | FPP,CPP |
MTT165 | 1650 | 450~760 | 108 | FPP,CPP |
MTT185 | 1850 | 720~1020 | 132 | FPP,CPP |
MTT200 | 2000 | 980~1270 | 165 | FPP,CPP |
MTT225 | 2250 | 1200~1550 | 235 | FPP,CPP |
MTT250 | 2500 | 1450~2100 | 326 | FPP,CPP |
MTT275 | 2750 | 2060~2480 | 378 | FPP,CPP |
MTT300 | 3000 | 2300~2930 | 462 | FPP,CPP |
