Germany Standard DIN Type Roller Fairlead

Inquire

  • DY3133

  • GB, DIN, JIS

  • Galvanized

  • Sorted

  • deyuan

  • China

  • Boat

  • Customized

  • Steel

  • 2 Years

  • ccs

  • 2503000000



Germany Standard DIN Type Roller Fairlead


Specifications:

1.Roller Fairlead; Swivel Fairlead;
2.Certificate of GL,DNV,CCS,ABS,BV;
3.Material: Steel;
4.Design by customers' requirement.


Overview:

Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.
Fairleads are provided horizontal, vertical, diagonal ribs to increase stiffness and fairleads strength. Fairlead compact structure, reasonable openings, except for ordinary vessels towing or mooring, but also for navigation in the canal waterway ship is towed or moored.
Hi-sea Group supply all kinds of roller fairlead .Quality management and product strict according to IACS requirement.DIN,JIS standard.
Can according to as customer requirement,design 3 rollers to 10 rollers fairlead.
Apply Wire diameter from 19.5mm--68mm
Apply Rope diameter from 36mm---100mm


Parameters:

Rated towing pull Rope
(mm)		 Wre size (mm) A
(mm)		 B C D E F G weight
20KN -12 12 180 100 650 80 446 170 10 75kg
30KN -16 16 230 130 800 100 546 210 10 130kg
50KN -20 20 250 130 900 120 626 250 15 220kg
80KN -24 24 280 160 1000 140 716 288 20 320kg
120KN -32 32 300 160 1200 180 836 366 25 580kg
200KN -40 40 320 180 1350 245 1030 500 35 1100kg
320KN -48 40 400 250 1700 300 1236 610 45 2210kg

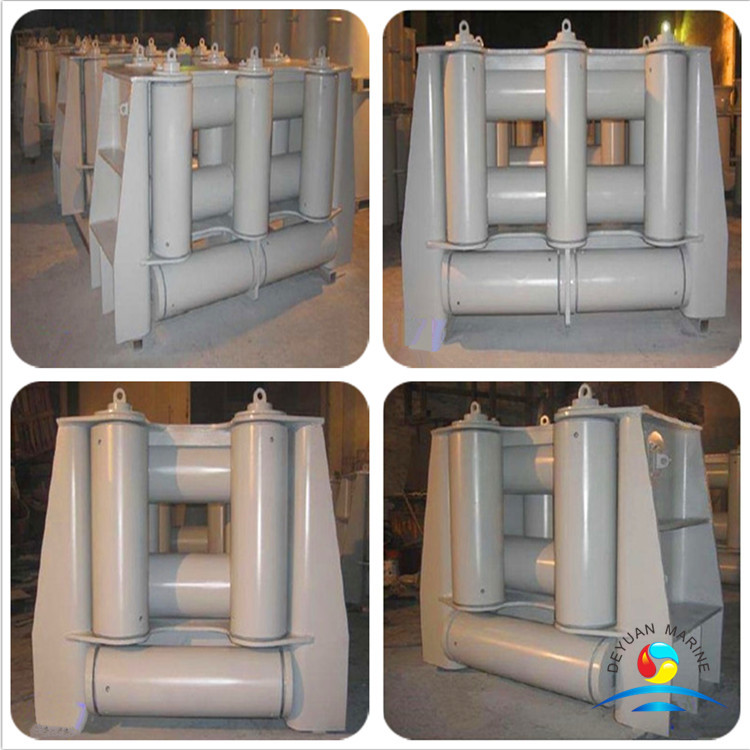

Germany Standard DIN Type Roller Fairlead
Germany Standard DIN Type Roller Fairlead
