Marine Vertical Lead Sheave Winch and Windlass Manufacturer

Inquire

  • DY681012

  • Ship Launching

  • Deyuan

  • CCS, BV, GL, CE, EC,

  • 63072000

  • Iron and Steel

  • CCS

  • Wooden Case

  • China

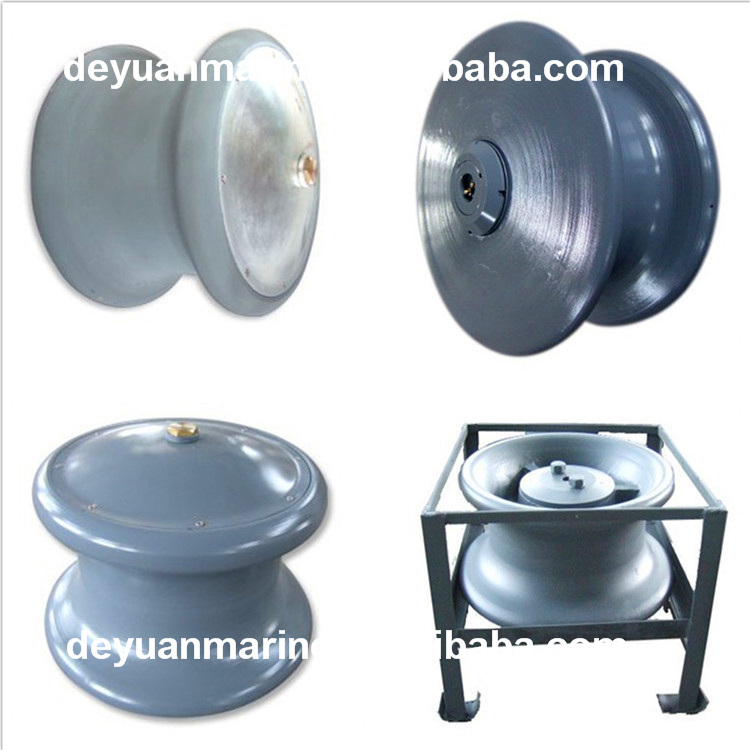

Marine Vertical Lead Sheave Winch and Windlass Manufacturer

China Deyuan Marine fitting Co., Ltd are leading supplier of marine mooring equipment, such as marine fairlead, marine bitts, marine roller fairlead, vertical lead sheave
Material: Steel frame with cast steel sheaves
Warranty: 2 Years
Working Time: 10-15 Years
Certificate: BV, ABS, GL, NK, LR.

Panama chock, Panama chock AC type, Marine chock, DIN marine fairlead
Marine mooring chock, Marine EU-type deck chock, Marine cast steel fairlead roller
Marine fairlead roller, marine roller fairlead, swivel fairlead, Fairlead roller JIS F-2014, double fairlead roller, 4 roller fairlead, Marine fairlead with single roller,
Marine fairlead with double roller, DIN type roller fairlead, Horizontal fairlead roller,
Cavel type cast steel dock bollard, dock bitts, dock bollard
J type dock bollard, Vertical lead sheave, pedestal fairlead
Sheavedia
(inch)		 Wire rope size
(inch)		 SWL
(KN)		 A
(inch)		 B
(inch)		 C
(inch)		 D
(inch)		 E
(inch)		 F
(inch)		 G
(inch)
6 1/2 4000 7 3 1/2 3 3/4 5 5 1/4 6 1/2 1/2
8 5/8 8000 9 1/4 4 3/4 4 1/2 6 7 1/2 9 5/8
10 3/4 12000 11 1/2 5 3/4 5 1/2 7 9 1/2 11 3/4
12 7/8 20000 15 1/2 8 6 8 13 15 7/8


Marine Vertical Lead Sheave Winch and Windlass Manufacturer
Marine Vertical Lead Sheave Winch and Windlass Manufacturer Marine Vertical Lead Sheave Winch and Windlass Manufacturer

More types of mooring equipments with competitive price can be offered, please contact us for more details.
