Steel
LR
1001 - 3000kg
H.H.P. Stockless Type Ac-14 Anchor
ABS, LR, CCS, BV, DNV, NK, KR, GL.
Packaging: Export standard
30 days
H.H.P. Stockless Type Ac-14 Anchor
1. Sizes:180kgs-5850kgs.
2. Nude pkgs.
3. Black tempered or Blue tempered.
H.H.P. Stockless Type Ac-14 Anchor
China Deyuan Marine Fitting Co.,ltd is a professional supplier of marine mooring equipment,such as marine anchor,anchor chain,chain stopper,mooring rope,mooring reel,marine bollard,marine chock,roller fairleads,chain cable clenches etc,pls contact us for more details.
Ac-14 Anchor features:
1. certificate: ABS, LR, CCS, BV, DNV, NK, KR, GL
2.Sizes:180kgs-5850kgs
3.nude package
4.Black tempered or Blue tempered

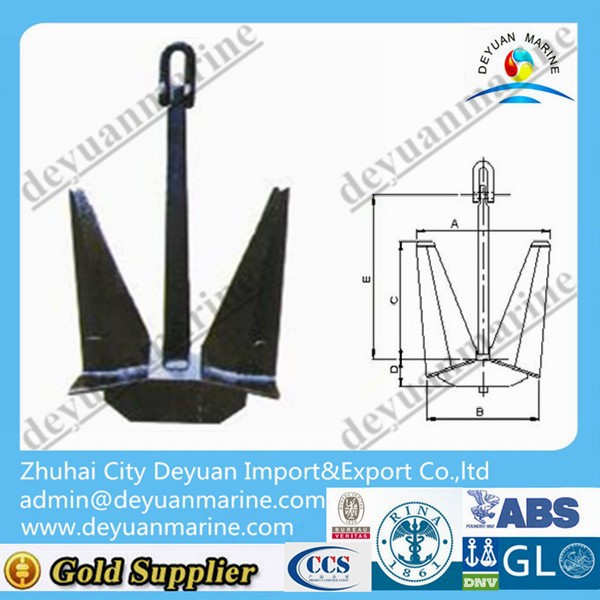

(KG) Nominal weight | A | A1 | B | B1 | B2 | C |
180 | 439 | 805 | 557 | 162 | 902 | 249 |
225 | 473 | 867 | 600 | 174 | 972 | 268 |
275 | 506 | 927 | 641 | 186 | 1039 | 287 |
340 | 543 | 995 | 688 | 200 | 1115 | 308 |
430 | 587 | 1076 | 744 | 216 | 1206 | 333 |
460 | 601 | 1100 | 760 | 221 | 1233 | 341 |
570 | 645 | 1182 | 817 | 237 | 1324 | 366 |
675 | 683 | 1250 | 864 | 251 | 1401 | 387 |
750 |
|
