12V
CE, ISO9001:2000, RoHS, CCS
5 - 10A
> 4500GPH
5-10
standard export wooden cases packing or as required
Within 30 days after receiving deposit
Horizontal Crushing Pump
* pumping lubricating oil.
* OEM service.
* competitive price.
* advanced techniques.

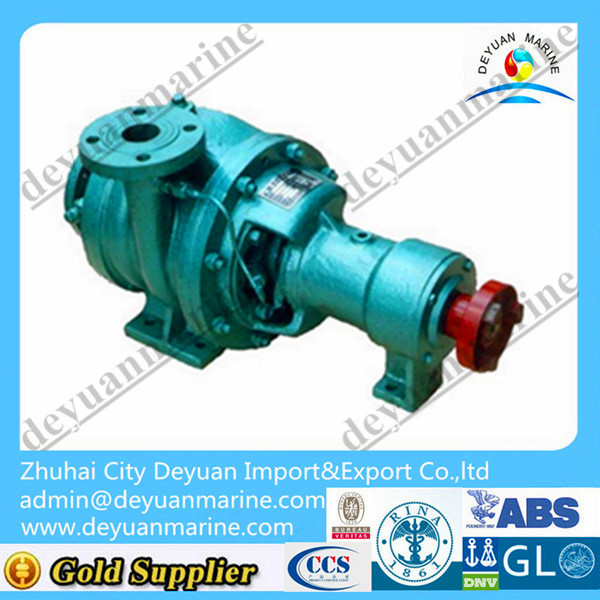

CWF series marine horizontal crushing pump
CWF series marine horizontal crushing pump is the open impeller centrifugal discharge pump.Which is used to pulverized and transfer the soft foul in the anitary sewage under 85 degrees,such as sheet,food draft,dirt dregs,sluge dejecta and so on.The maxium diameter of solid particle after circular pulverizing is within 5mm.It is also applicable to pulverize the coagulate of heavy oil under low temperature.In order to facilitate injection.
The pump rotates clockwise viewed from pump inlet.
Type | (50HZ,3phase,380V) main technical parameter | Motor power(kw) | ||||
Capacity (m3/h) | Head (m) | Speed (r/min) | NPSHR (m) | Shaft power(kw) | ||
0.5CWF-10 | 5 | 10 | 2900 | 3.5 | 0.65 | 1.1 |
0.5CWF-15 | 5 | 15 | 2900 |
|
| 1.5 |
0.5CWF-15A | 5 | 13 | 2900 |
|
| 1.1 |
0.5CWF-20 | 5 | 20 | 2900 |
|
| 1.5 |
0.5CWF-20A | 5 | 18 | 2900 |
|
| 1.5 |
0.5CWF-25 | 5 | 25 | 2900 |
|
| 1.1 |
0.5CWF-30 | 5 | 30 | 2900 |
|
| 1.5 |
1CWF-10 | 10 | 10 | 2900 |
|
| 1.5 |
1CWF-15 | 10 | 15 | 2900 |
|
| 2.2 |
1CWF-20 | 10 | 20 | 2900 |
|
| 3 |
1CWF-25 | 10 | 25 | 2900 | 3.8 | 2.3 | 4 |
1CWF-30 | 10 | 30 | 2900 |
|
| 5.5 |
0.5CWF1-10 | 6 | 14.5 | 3500 |
|
|
|
0.5CWF1-15 | 6 | 21.5 | 3500 |
|
|
|
0.5CWF1-15A | 6 | 18.5 | 3500 |
|
|
|
0.5CWF1-20 | 6 | 29 | 3500 |
|
|
|
0.5CWF1-20A | 6 | 26 | 3500 |
|
|
|
0.5CWF1-25 | 6 | 36 | 3500 |
|
|
|
0.5CWF1-30 | 6 | 43 | 3500 |
|
|
|
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Tina Zhu
E-mail: sales5[at]deyuanmarine[dot]com
Skype: marinesales5
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13286053269
Web: http://www.deyuanmarine.com
