Guangdong, China (Mainland)
DEYUAN MARINE
JCY22-2
Fluorescent Pendant Light
>0.85
G13
IP55
5.2Kg
Marine
Wooden Box
7Days

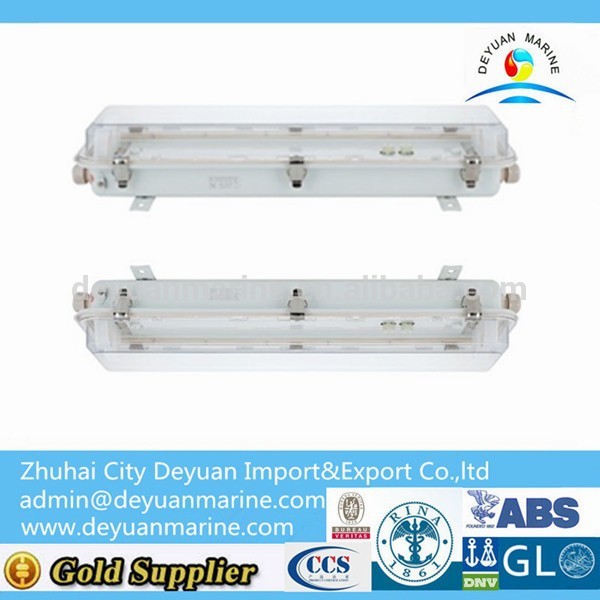

Fluorescent Pendant Light JCY22-2
The scope:
Fit for illumination of water dripping,water spattering,water coagulating place in ships,such as oven cabin,tunnel,pipeline and weather deck etc.
Products characteristic:
1.The shell adopts good quality steel plate tensioned,lampshade adopts injection of PC,and has the seal structure.
2.In order to prevent from electric shocking,equipped with a copper earthing rod with the mark in and out the lights.
3.Plug in type lamp holder,equipped wiring terminal inside,convenient to connect.
4.The lamp equipped B15 lamp holder,used for 24V/15W emergency bulb,the edge of lampshade marks the marking,remark clear that need the emergency device when order.
5.Equipped compensating capacitance inside the lamp,also has the good effect of start.
Adopt standard:
Conform to CB/T3857-1999 standard
Type | Power | Voltage | Lamp holder | Protection class | Remark |
JCY22-2 | 2X20W | 110V/60HZ 220V/50HZ 220V/60HZ | G13 | IP56 | —— |
JCY22-2E | with emergency | ||||
JCY22-EF | with emergency and guard |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Tina zhu
E-mail: sales5[at]deyuanmarine[dot]com
Skype: marinesales5
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86-13286053269
Web: http://www.deyuanmarine.com
