LNG ship storage tank electric thermal storage heater 3~300m3
LNG ship storage tank electric thermal storage heater 3~300m3

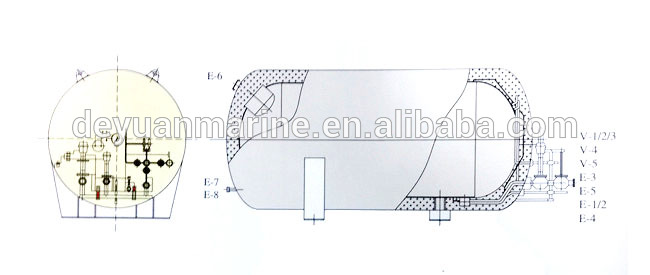

The interfaces | |||
---|---|---|---|
E-1 standby gas export | E-2 gas export | E-3 Top of the inlet | E-4 The bottom of the |
E-5 inlet,liquid oudlet | E-6 outer cylinder explosion | E-7 vacuum port | E-8 measuring the vacuum port |
V-1/2 remote valve(gas phase) | V-3 remote valve(liquid phase) | V-4 vent | V-5 liquid vent valve |
Note:
1.Dimensions and orientation of boiler are adapted to customer's need.
2.The data in the lable is only for reference and subject to be change without notice.
3.The types in the lable are a part of our products. Please contact us if you need other types.
