Marine Anchor Chains

Grade 2 Grade 3 LR ABS DNV NV  Marine Anchor Chains



We supply all kinds of Marine anchor chain from 12mm to 162mm for shipbulding,anchor chain replacement, the grade is U2 and U3, all all chain can be supplied with Class Certificate, such as ABS, LR, BV, DNV, NK, GL, KR,IRS and CCS.



1.Material:carbon steel

2.Strcture:welded link chain

3.Inepensive and quality assurance

4.Size: 12mm-152mm

5.Grade:U2 or U3

6.Surface: Black tarred,Hot Dip Galvanized, self-colour.

7.Certificate: LR, ABS, DNV, BV, NK, GL, RINA,CCS.





Shipment: Fast Delivery and Punctual Shipment.



Main Specification

Chain Diameter mm	Proof Load		Breaking Load		Chain Diameter mm	Minimum Weight Kg per lenght of 27,5 m
	Grade 2 kN	Grade 3 kN	Grade 2 Kn	Grade 3 kN
16	107	150	150	216	16	160
17.5	127	179	179	256	17.5	190
19	150	211	211	301	19	225
20.5	175	244	244	349	20.5	265
24	237	332	332	476	24	360
26	278	389	389	556	26	420
28	321	449	449	642	28	490
30	368	514	514	735	30	565
32	417	583	583	833	32	635
36	523	732	732	1050	36	800
38	581	812	812	1160	38	895
40	640	896	896	1280	40	995
42	703	981	981	1400	42	1100
44	769	1080	1080	1540	44	1200
46	837	1170	1170	1680	46	1320
48	908	1280	1280	1810	48	1440
50	981	1370	1370	1960	50	1560
52	1060	1480	1480	2110	52	1675
54	1140	1590	1590	2270	54	1820
56	1220	1710	1710	2430	56	1935
58	1290	1810	1810	2600	58	2075
60	1380	1940	1940	2770	60	2220
62	1470	2060	2060	2940	62	2365
64	1560	2190	2190	3130	64	2550
66	1660	2310	2310	3300	66	2695
68	1750	2450	2450	3500	68	2890
70	1840	2580	2580	3690	70	3030
73	1990	2790	2790	3990	73	3290
76	2150	3010	3010	4300	76	3555
78	2260	3160	3160	4500	78	3755
81	2410	3380	3380	4820	81	4035
84	2580	3610	3610	5160	84	4395
87	2750	3850	3850	5500	87	4760
92	3040	4260	4260	6080	92	5200
97	3350	4680	4680	6690	97	5760
100	3530	4940	4940	7060	100	6130
102	3660	5120	5120	7320	102	6505



32mm Stud Link Anchor Chain



40mm Studless Link Anchor Chain



Proof Test for 40mm Stud Link Anchor Chain



End Link

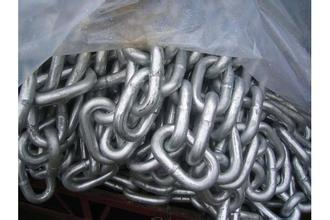

Galvanized Anchor Chain
