DEYUAN MARINE
Marine Anemometer
Digital LED
Direction and variation LED ring
6levels adjustable
0.1m/s
Standard Export Packing
7~15 Days
Marine Anemometer

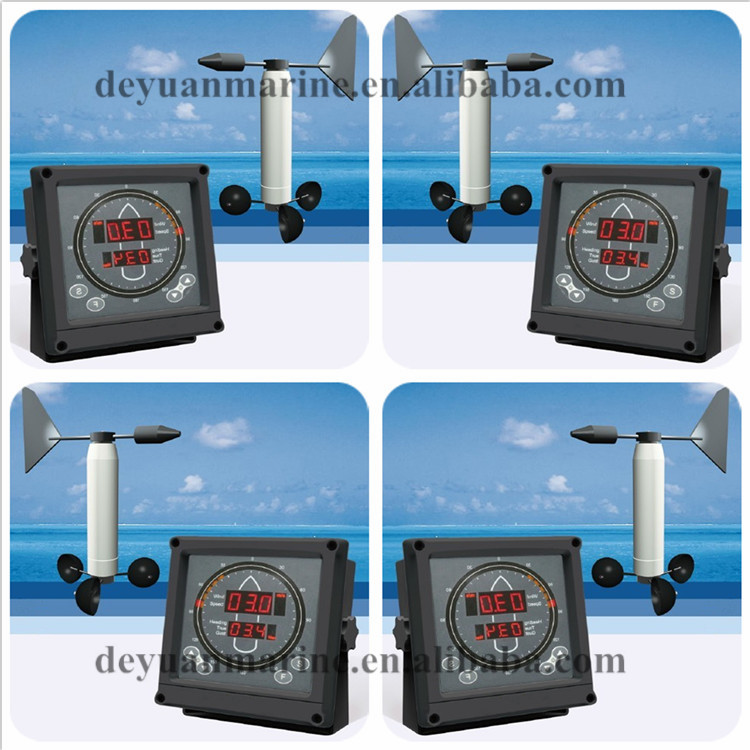

Marine Anemometer AM706 is a combined instrument for wind speed and wind direction. It can measure relative wind speed (accuracy ±5%), relative wind direction (display accuracy 10 °, output accuracy ± 1 °).
*high resolution wind speed (0.1m/s)&direction(1°) Anemometer
*Temperature resistant &Moisture Proof mechanic design
*High brightness LED displayer
*Current Direction &Gust range LED ring display
Marine Anemometer | |
Item | Specification |
Speed display | Digital LED |
Direction display | Direction and variation LED ring |
Heading display | Digital LED(with Gyro data input) |
True wind direction | Digital LED (with Gyro data input) |
Max wind speed | Digital LED display |
Brightness adjustment | 6levels adjustable |
Power-drop alarm | Alarm with inner buzzer |
Data output | NMEA0183 wind speed and direction |
NMEA Port | RS422 output 2pin NMEA A/B |
Direction Accuracy | ±1° |
Wind range | 0-359° |
Speed accuracy | 0.1m/s |
Speed range | 0-25m/s |
Startup wind speed | ≤1.2m/s |
Power supply | 24V DC(20-32V) 5W |
Operating temperature | -20 to +70 degree C |
Humidity | 10-90%relative,no condensation |
Protection | IP23 |
Sensor | |
Operating temperature | -15 to +85 degree C |
Storage temperature | -20 to +85 degree C |
Protection | IP56 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Tina Zhu
E-mail: sales5[at]deyuanmarine[dot]com
Skype: marinesales5
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: + 86 - 13286053269
Web: http://www.deyuanmarine.com
