China (Mainland)
Deyuan marine
various
Hinge
GB/T5746-2001, ISO3903-1993
Brass/Copper
Toughened Glass
Inwards, outwards, left, right, upwards
plywood case
10-60days according to the quantity

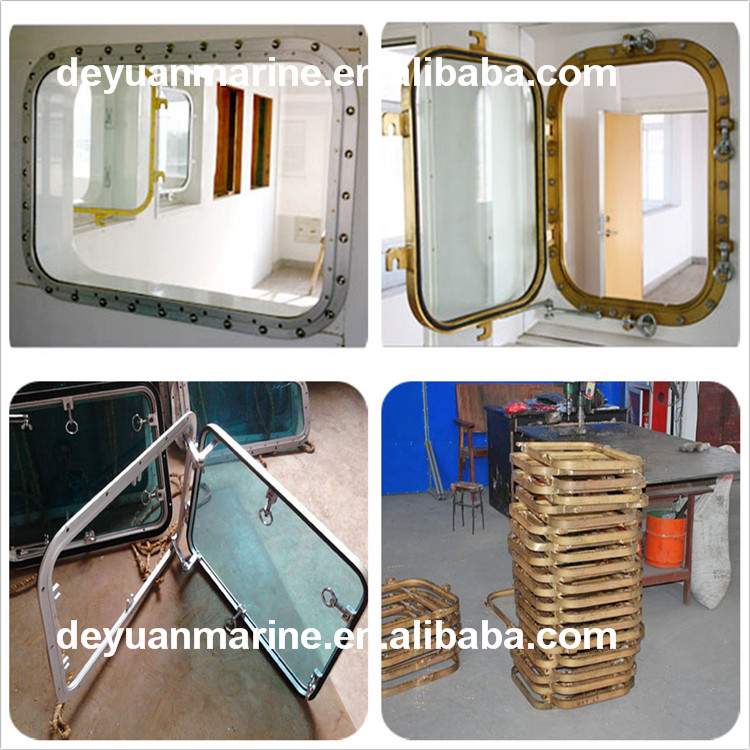

Marine Copper Opening Window:
Standard: GB/T5746-2001, ISO3903-1993
Ship’s ordinary rectangular window is used on the supperstructure above freeboard deck or deck house of marine ships and naval ships and in the relative spaces of marine structure. It can be used as rectangular windows of inland ships. This product meets the regulations of SOLAS.
N | Ordinary | Common rectangular windows with toughened safety glass |
P | Fireproof | Rectangular windows used in “B” class fireproof division |
H | Heating | Rectangular windows with an electric heated glass |
E-heavy type rectangular window
F-light type rectangular window
Code | Nominal Size(mm) |
1 | 300x425 |
2 | 355x500 |
3 | 400x560 |
4 | 450x630 |
5 | 500x710 |
6 | 560x800 |
7 | 900x630 |
8 | 1000x710 |
9 | 1100x800 |
Series | Type | Code | Nominal Size | Opening Size | Frame | Opening | ||
wxh | W1xh1 | r | W2xh2 | W3xh3 | ||||
N, P, H | E,F | 1 | 300x425 | 352x477 | 76 | 348x473 | 430x555 | ILB,ILW,IRB,IRW,ITB,ITW,OLB, OLW,ORB,ORW,OTB,OTW,NOB,NOW |
2 | 355x500 | 407x552 | 76 | 403x548 | 485x630 | |||
3 | 400x560 | 452x612 | 76 | 448x608 | 530x690 | |||
4 | 450x630 | 502x682 | 126 | 498x678 | 580x760 | |||
5 | 500x710 | 552x762 | 126 | 548x758 | 630x840 | |||
6 | 560x800 | 612x852 | 126 | 608x848 | 690x930 | |||
7 | 900x630 | 952x682 | 126 | 948x678 | 1030x760 | |||
8 | 1000x710 | 1052x762 | 126 | 1048x758 | 1130x840 | |||
9 | 1100x800 | 1152x852 | 126 | 1148x848 | 1230x930 |
