Marine Fixed Aluminum Window

  • China (Mainland)

  • Deyuan

  • various

  • Bending

  • CB/T3226-1995

  • Aluminum

  • Toughened Glass

  • Bolted

  • 8/10/12/15mm

  • plywood case

  • 10-60days according to the quantity



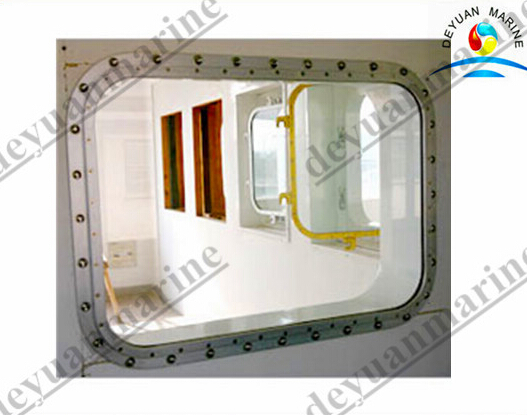

Marine Aluminum Fixed  Window



Product Description



Standard: CB/T3226-1995

It is installed in the wheel houses, bridges, enclosed spaces which is used for observation and operation of various types of ships and marine structures.

The shape can be rectangular, parallelogram or trapezoidal .



1.Types of non-opening rectangular windows for wheel house

Type

Window frame type

Name

Material of window frame

A

BH

Bolted fixed rectangular window with an electric heated glass pane

Aluminum Alloy

BN

Bolted fixed rectangular window with a toughened glass pane

B

WH

Welded fixed rectangular window with an electric heated glass pane

Carbon Steel

WN

Welded fixed rectangular window with a toughened glass pane



2.Parameters of fixed rectangular windows for wheel house

Type

Nominal Size

Frame

Size of opening

Glass Thickness

Weight (kgs)

WXH

W1XH1

W2XH2

W3XH3

r

BH

BN

BH

BN

A

800X630

848X678

930X760

852x682

126

12

15

25.5

25.9

800X710

848X758

930X840

852x762

12

15

28.1

28.7

900X630

948X678

1030X760

952x682

12

17

28.2

30.0

900X710

948X758

1030X840

952x762

12

17

30.9

32.9

900X800

948X848

1030X930

952x852

12

17

33.9

36.1

1200X630

1248X378

1330X760

1252x682

15

20

41.6

44.0

1200X710

1248X758

1330X840

1252x762

15

20

45.9

48.6

1200X800

1248X848

1330X930

1252x852

15

20

50.6

53.6

1500X710

1548X758

1630X840

1552x762

15

20

56.1

59.4

1500X800

1548X848

1630X930

1552x852

15

20

61.2

64.9

1800X710

1848X758

1930X840

1852x762

15

20

66.3

70.3

1800X800

1848X848

1930X930

1852x852

15

20

72.4

76.8

1800X900

1848X948

1930X1030

1852x952

15

20

77.5

82.5

Type

Nominal Size

Frame

Size of opening

Glass Thickness

Weight (kgs)

WXH

W1XH1

W2XH2

W3XH3

r

WH

WN

WH

WN

B

800X630

848X678

930X760

852x682

126

12

15

41.3

41.8

800X710

848X758

930X840

852x762

12

15

44.2

44.8

900X630

948X678

1030X760

952x682

12

17

45.1

46.9

900X710

948X758

1030X840

952x762

12

17

48.5

50.5

900X800

948X848

1030X930

952x852

12

17

52.4

54.6

1200X630

1248X378

1330X760

1252x682

15

20

60.9

63.3

1200X710

1248X758

1330X840

1252x762

15

20

66.6

69.2

1200X800

1248X848

1330X930

1252x852

15

20

72.2

75.2

1500X710

1548X758

1630X840

1552x762

15

20

79.8

83.1

1500X800

1548X848

1630X930

1552x852

15

20

86.4

90.1

1800X710

1848X758

1930X840

1852x762

15

20

93.1

97.1

1800X800

1848X848

1930X930

1852x852

15

20

100.4

104.8

1800X900

1848X948

1930X1030

1852x952

15

20

108.6

113.6

*The size is in the list is just for reference, it is can be customerized according to the actual situation of the vessel.



3.Mounting of the heated glass pane fro fixed rectangular window for wheel house should conform to the requirements of ISO3434, power loading and parameters necessary for the glass pane as below.

Electrical Supply

Overheating protection device

Minimum power loading w/dw2

Current

Voltage (V)

Frequency (HZ)

7

12

17

Code

DC

24

-

G

7G01

12G01

17G01

S

7S01

12S01

17S01

110

-

G

7G02

12G02

17G02

S

7S02

12S02

17S02

220

-

G

7G03

12G03

17G03

S

7S03

12S03

17S03

G---group regulator, S---single regulator
