Guangdong, China (Mainland)
DEYUAN MARINE, Deyuan Brand
GCD, CLH , CLZ, CLN , CSL ,CLV, etc
Centrifugal Pump, Centrifugal Pump
Single-stage Pump
Water
Electric, Electric
Standard
Diesel
Low Pressure, High Pressure
Maritime
CE/ISO9001:2008
two year
Cast iron ,Stainless steel, Alloy steel etc
WOODEN CASE
Normally 30days after receive the payment

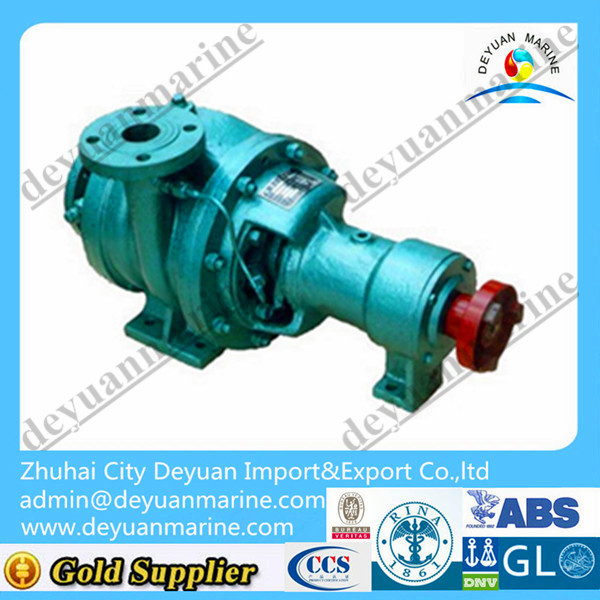

Marine GCD Water Sealing Pump
priming swirl pumps are applicable to pumping elear water and light erroding medium.
The pump rotates clockwise viewed from motor.
GCD Water Sealing Pump
Type | (50HZ,3phase,380v) main technical parameter | Power (kw) | ||||
Capacity (m3/h) | Head (m) | Speed R/min | NPSHR (m) | Shaft power(kw) | ||
32 CWL-4 | 2 | 20.2 | 2900 | 4.2 |
| 1.1 |
4 | 21 | 4.1 | 0.74 | |||
4.8 | 20.9 | 4.1 |
| |||
32CWL-3 | 2 | 31 | 2900 | 3.0 |
| 1.5 |
4 | 30 | 2.5 | 0.99 | |||
4.8 | 29.2 | 2.8 |
| |||
40CWL-5 | 4 | 22.2 | 2900 | 4.4 |
| 1.1 |
8 | 21 | 3.0 | 0.85 | |||
9.6 | 20 | 3.1 |
| |||
40CWL-4 | 4 | 32.3 | 2900 | 3.6 |
| 2.2 |
8 | 30 | 2.6 | 1.31 | |||
9.6 | 28.5 | 2.5 |
| |||
40CWL-3 | 4 | 43 | 2900 | 3.0 |
| 3 |
8 | 42 | 2.5 | 2.13 | |||
9.6 | 41 | 2.9 |
| |||
50CWL-6 | 6 | 22.2 | 2900 | 2.8 |
| 1.5 |
12 | 21 | 2.0 | 1.16 |
