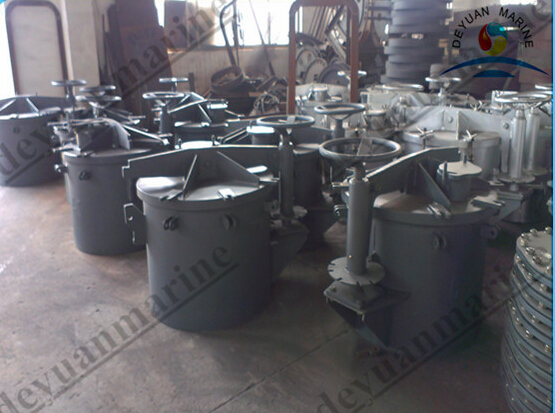

Marine Rotating Oil Tight Hatch Cover

Specifications

Rotating Oiltight Hatch Cover
1)Standard or customerized size
2)CCS,BV,DNV,ABS,NK,LR,GL cert
3)Competitive price

Marine Rotating Oiltight Hatch Cover

Standard: CB/T282-94

The rotating oiltight hatch cover is used as the oil tight hatch cover of cargo tank passageway onboard oil tanker.



Types:

Type A- Round Type

Type B-Elliptic Type



Main Size List(mm):

Type A

Type	Clear Size D	Deck Opening Size D1	H	H1	H2	H3	H4	L	t1	t2	Clip Quantity	Weight(kgs)
A	600	570	600	290	538	585--700	100	480	10	12	4	295
	700	670						530			6	325
	800	770						580				417
	1000	970						682	12	14		539
	1200	170						782				630

Type B

Type	Clear Size AxB	Deck Opening Size A1xB1	A2	B2	H1	H2	H3	H4	L	L1	t1	t2	Clip Quantity	Weight(kgs)
B	700x1200	720x1170	835	1285	290	538	585--700	100	556	430	12	14	6	543
	750x1500	720x1470	835	1585					556	460				593
	850x1500	820x1470	935	1585					606	460				614
