Marine Self-priming Vortex Pump
CWX
standard export wooden cases packing or as required
Within 30 days after receiving deposit
Self-priming Vortex Pump

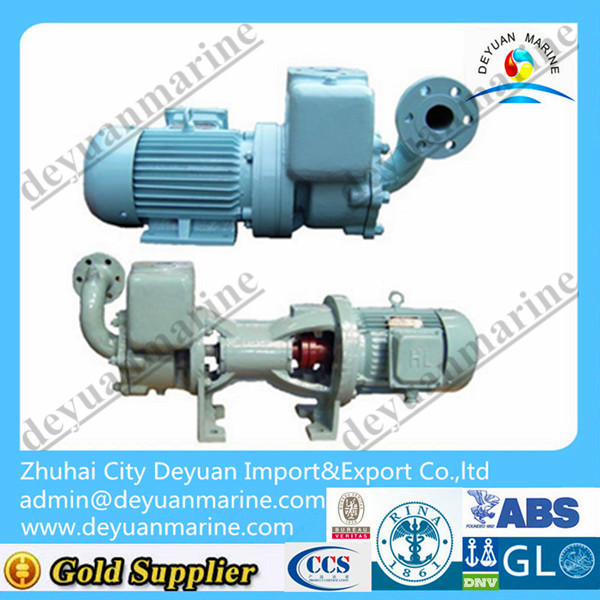

Marine Self-priming Vortex Pump CWX Series
* Pumping lubricating oil.
* OEM service.
* Competitive price.
* Advanced techniques.
CWX series marine self-priming vortex pump
CWX series marine self-priming vortex pump are applicable to pumping fresh and sea water for drinking washing and sanitary uses in vessels.
The pump rotates clockwise viewed from motor.
Main technical parameter
Type | (50HZ)Main technical parameter | Motor power(kw) | ||||
Capacity (m3/h) | Head (m) | Speed (r/min) | NPSHR (m) | Shaft power(kw) | ||
1.5CWX-2 | 3 | 40 | 2900 | 4 | 2 | 2.2 |
1.5CWX-3 | 6.5 | 35 | 2900 | 4 | 2.3 | 3 |
1.5CWX-4 | 10 | 35 | 2900 | 4 | 2.5 | 4 |
1.5CWX-2A | 3 | 40 | 2900 | 4 | 2 | 2.2 |
1.5CWX-3A | 6.5 | 35 | 2900 | 4 | 2.3 | 3 |
1.5CWX-4A | 10 | 35 | 2900 | 4 | 2.5 | 4 |
60HZ main technical parameter | ||||||
1.5CWX1-2 | 3.6 | 57 | 3500 | 4.5 | 3.43 | 4 |
1.5CWX1-3 | 7.8 | 50 | 3500 | 4.5 | 3.95 | 5.5 |
1.5CWX1-4 | 12 | 50 | 3500 | 4.5 | 4.29 | 5.5 |
1.5CWX1-2A | 3.6 | 57 | 3500 | 4.5 | 3.43 | 4 |
1.5CWX1-3A | 7.8 | 50 | 3500 | 4.5 | 3.95 | 5.5 |
1.5CWX1-4A | 12 | 50 | 3500 | 4.5 | 4.29 | 5.5 |
