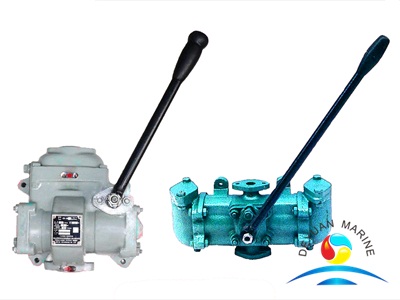

Semi Rotary Hand Pump
1. Marine hand pump.
2. Certificate: CCS,ABS,LR,NK,BV,GL,DNV and etc.
3. Warranty : One year
Product Name: Marine Hand Pump
Application:
The Marine Hand Pump is of double-acting reciprocating piston structure, suitable for delivery of fresh water ,fuel sewage and non-corrosive liquids. It is not suitable for the liquids containing fibers or other solid granules.
Y type in the CS series pumps are used to draw oils or fresh water , H type in the CS series pumps are used to draw sea water . CS-I and CS-III series hand pumps are used to draw freshwater.
Specification:
| Type | Capacity | Head | Suction vacuum height | Weight |
| (l/min) | (m) | (m) | (kg) | |
| CYL-15 | 15 | 14 | 5 | 5 |
| CYL-20 | 20 | 14 | 5 | 5.5 |
| CYL-25 | 25 | 26 | 6 | 7.5 |
| CYL-32 | 28 | 26 | 6 | 9 |
| CYL-40 | 65 | 18 | 6.5 | 22.5 |
| CYL-50 | 105 | 18 | 6.5 | 34.5 |
For more details, please feel free to contact us.
Semi Rotary Hand Pump
1. Marine hand pump.
2. Certificate: CCS,ABS,LR,NK,BV,GL,DNV and etc.
3. Warranty : One year
Product Name: Marine Hand Pump
Application:
The Marine Hand Pump is of double-acting reciprocating piston structure, suitable for delivery of fresh water ,fuel sewage and non-corrosive liquids. It is not suitable for the liquids containing fibers or other solid granules.
Y type in the CS series pumps are used to draw oils or fresh water , H type in the CS series pumps are used to draw sea water . CS-I and CS-III series hand pumps are used to draw freshwater.
Specification:
| Type | Capacity | Head | Suction vacuum height | Weight |
| (l/min) | (m) | (m) | (kg) | |
| CYL-15 | 15 | 14 | 5 | 5 |
| CYL-20 | 20 | 14 | 5 | 5.5 |
| CYL-25 | 25 | 26 | 6 | 7.5 |
| CYL-32 | 28 | 26 | 6 | 9 |
| CYL-40 | 65 | 18 | 6.5 | 22.5 |
| CYL-50 | 105 | 18 | 6.5 | 34.5 |
For more details, please feel free to contact us.
