China (Mainland)
Deyuan Marine
various
Hinge
CB/T3226-1995
Steel
Toughened Glass
8/10/12/15mm
plywood case
10-60days according to the quantity

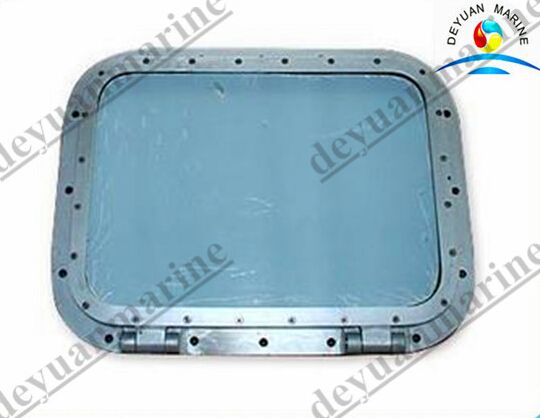

Marine Steel Fixed Rectangular Window for Wheel House:
Standard: CB/T3226-1995
It is installed in the wheel houses, bridges, enclosed spaces which is used for observation and operation of various types of ships and marine structures.
The shape can be rectangular, parallelogram or trapezoidal .
| Type | Window frame type | Name | Material of window frame |
| A | BH | Bolted fixed rectangular window with an electric heated glass pane | Aluminum Alloy |
| BN | Bolted fixed rectangular window with a toughened glass pane | ||
| B | WH | Welded fixed rectangular window with an electric heated glass pane | Carbon Steel |
| WN | Welded fixed rectangular window with a toughened glass pane |
| Type | Nominal Size | Frame | Size of opening | Glass Thickness | Weight (kgs) | ||||
| WXH | W1XH1 | W2XH2 | W3XH3 | r | BH | BN | BH | BN | |
| A | 800X630 | 848X678 | 930X760 | 852x682 | 126 | 12 | 15 | 25.5 | 25.9 |
| 800X710 | 848X758 | 930X840 | 852x762 | 12 | 15 | 28.1 | 28.7 | ||
| 900X630 | 948X678 | 1030X760 | 952x682 | 12 | 17 | 28.2 | 30.0 | ||
| 900X710 | 948X758 | 1030X840 | 952x762 | 12 | 17 | 30.9 | 32.9 | ||
| 900X800 | 948X848 | 1030X930 | 952x852 | 12 | 17 | 33.9 | 36.1 | ||
| 1200X630 | 1248X378 | 1330X760 | 1252x682 | 15 | 20 | 41.6 | 44.0 | ||
| 1200X710 | 1248X758 | 1330X840 | 1252x762 | 15 | 20 | 45.9 | 48.6 | ||
| 1200X800 | 1248X848 | 1330X930 | 1252x852 | 15 | 20 | 50.6 | 53.6 | ||
| 1500X710 | 1548X758 | 1630X840 | 1552x762 | 15 | 20 | 56.1 | 59.4 | ||
| 1500X800 | 1548X848 | 1630X930 | 1552x852 | 15 | 20 | 61.2 | 64.9 | ||
| 1800X710 | 1848X758 | 1930X840 | 1852x762 | 15 | 20 | 66.3 | 70.3 | ||
| 1800X800 | 1848X848 | 1930X930 | 1852x852 | 15 | 20 | 72.4 | 76.8 | ||
| 1800X900 | 1848X948 | 1930X1030 | 1852x952 | 15 | 20 | 77.5 | 82.5 | ||
| Type | Nominal Size | Frame | Size of opening | Glass Thickness | Weight (kgs) | ||||
| WXH | W1XH1 | W2XH2 | W3XH3 | r | WH | WN | WH | WN | |
| B | 800X630 | 848X678 | 930X760 | 852x682 | 126 | 12 | 15 | 41.3 | 41.8 |
| 800X710 | 848X758 | 930X840 | 852x762 | 12 | 15 | 44.2 | 44.8 | ||
| 900X630 | 948X678 | 1030X760 | 952x682 | 12 | 17 | 45.1 | 46.9 | ||
| 900X710 | 948X758 | 1030X840 | 952x762 | 12 | 17 | 48.5 | 50.5 | ||
| 900X800 | 948X848 | 1030X930 | 952x852 | 12 | 17 | 52.4 | 54.6 | ||
| 1200X630 | 1248X378 | 1330X760 | 1252x682 | 15 | 20 | 60.9 | 63.3 | ||
| 1200X710 | 1248X758 | 1330X840 | 1252x762 | 15 | 20 | 66.6 | 69.2 | ||
| 1200X800 | 1248X848 | 1330X930 | 1252x852 | 15 | 20 | 72.2 | 75.2 | ||
| 1500X710 | 1548X758 | 1630X840 | 1552x762 | 15 | 20 | 79.8 | 83.1 | ||
| 1500X800 | 1548X848 | 1630X930 | 1552x852 | 15 | 20 | 86.4 | 90.1 | ||
| 1800X710 | 1848X758 | 1930X840 | 1852x762 | 15 | 20 | 93.1 | 97.1 | ||
| 1800X800 | 1848X848 | 1930X930 | 1852x852 | 15 | 20 | 100.4 | 104.8 | ||
| 1800X900 | 1848X948 | 1930X1030 | 1852x952 | 15 | 20 | 108.6 | 113.6 | ||
*The size is in the list is just for reference, it is can be customerized according to the actual situation of the vessel.
| Electrical Supply | Overheating protection device | Minimum power loading w/dw2 | ||||
| Current | Voltage (V) | Frequency (HZ) | 7 | 12 | 17 | |
| Code | ||||||
| DC | 24 | - | G | 7G01 | 12G01 | 17G01 |
| S | 7S01 | 12S01 | 17S01 | |||
| 110 | - | G | 7G02 | 12G02 | 17G02 | |
| S | 7S02 | 12S02 | 17S02 | |||
| 220 | - | G | 7G03 | 12G03 | 17G03 | |
| S | 7S03 | 12S03 | 17S03 | |||
| G---group regulator, S---single regulator | ||||||
