China (Mainland)
Deyuan Marine
CB/T19-2001 C
Bolted
steel
CB/T19-2001
Flush, Raised,Sunk
10mm, 12mm
iron pallet
10-60days according to the quantiy and the required certificate

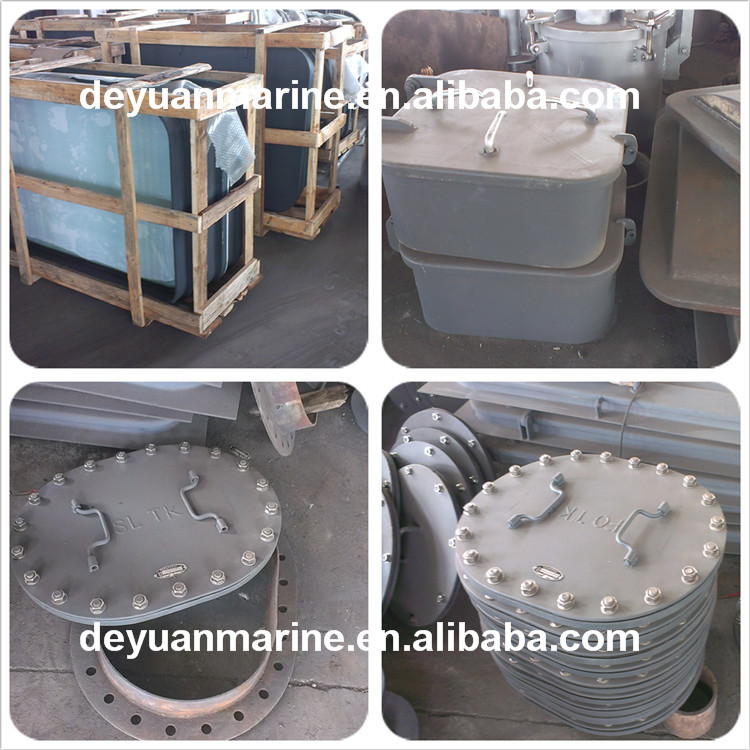

Marine Steel Sunk Manhole Cover
Standard: CB/T19-2001
Marine Manhole Cover is used for manhole on the oil tanks, water tanks, voil tanks and other tanks on various shipes. It is fixed on the falt positions on the hold bottom, deck and bulkhead.There are Type A,B,C & D. The shape can be round, oval, square.
*Manhole Cover Type C is Marine Sunk Manhole Cover.And in GB11628-89, it is Type D.
Cover: Carbon Steel
Coaming: Carbon Steel
Seal Ring: NBR
Bolt, Nut, Washer: Stainless Steel, Caron Steel , Copper
Model | Nominal Size | L | L1 | L2 | B | B1 | B2 | S | Bolt | Weight | |
LxB | Diamter | Quantity | kgs | ||||||||
C1 | 450x350 | 450 | 470 | 650 | 350 | 470 | 550 | 10 | M20 | 16 | 116.6 |
12 | 121.6 | ||||||||||
14 | 128.6 | ||||||||||
600x400 | 600 | 720 | 800 | 400 | 520 | 600 | 10 | 20 | 136.1 | ||
12 | 142.2 | ||||||||||
14 | 149.5 | ||||||||||
800x600 | 800 | 920 | 1000 | 600 | 720 | 800 | 12 | 26 | 171.5 | ||
14 | 182.6 | ||||||||||
18 | 206.8 | ||||||||||
C2 | 800x400 (Oval) | 800 | 930 | 1010 | 400 | 530 | 610 | 12 | 24 | 102.8 | |
14 | 118.2 | ||||||||||
18 | 146.2 | ||||||||||
18 | 76.2 |
Iron Pallet
One-Stop Service: We supply all kinds of marine and offshore products, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.
High quality: We are here to provide you with safe and reliable goods. Quality is always our main priority, our quality control program make sure that no defect or poor workmanship will be supplied. According to customer's requirement, our quality can meet the rules and standards of International Class Society such as LR, ABS, DNV, GL, BV, NK, KR, RINA, IRS and CCS.
Professional: With more than 7 years of experience in marine and offshore field, our marketing and technical team can assure you that we can understand your requirement well and deal with your inquiry professionally.
Fast Delivery: We cooperate with the reliable logistic partner, including land, air and sea to help us deliver the goods to your hand on time.
Reliable Partner: With 95% clients' satisfactory, we are confident to be your reliable partner.
We supply all kinds of marine and offshore products for various vessels including VLCC, FSO, FPSO, LNGC, LPGC, Container Ships, Cargo Liners, Bulk Carriers, Oil Tankers and oil platform, from securing the order to final delivery, we work hard to make sure everything goes as required and with high standard quality.
1.If you have the certificate requirements or any other requirements, please let me know when inquiry.
2. If you have the drawing, pls send to us. We can manufacture according to your drawing.
