DEYAUN MARINE
CLZ Series
Electromagnetic Pump
Single-stage Pump
Water
Electric
Standard
Electric
Low Pressure
Maritime
Deyuan
CLZ
CCS ABS GL etc
Exported packing
High
Vertical self-priming centrifugal pump
Wooden case or as required

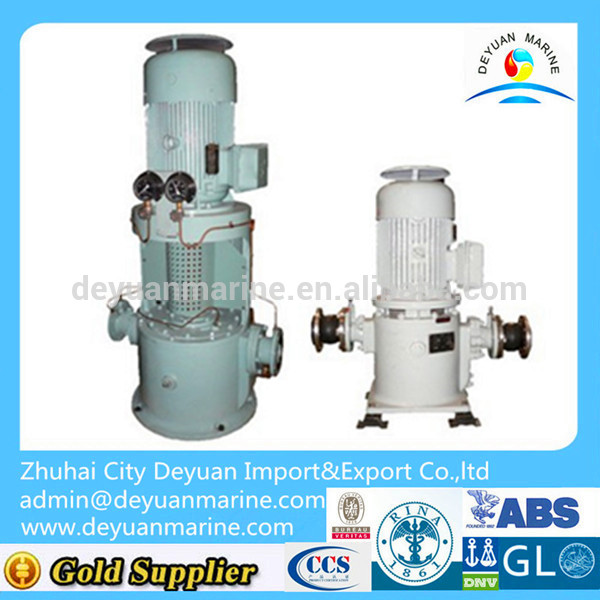

Marine cast iron/ Bronze vertical self-priming centrifugal pump price
CLZ marine vertical self-priming centrifugal pump
CLZ series marine vertical sefl-priming centrifugal pumps are used at cabin bottom to cool water and fight fire.It is
able to carry sea water under 70degrees. Fresh water and other non-eroding liquid.
Performance and parameter table for the power supply frequency of 50HZ,3 phase,380V
Type | (50HZ,3,380V)main techincal parameter |
| ||||
Capacity (m3/h) | Head (m) | Speed r/min | NPSHR m | Shaft power kw | power | |
40CLZ-2 | 5 | 60 | 2900 | 3.5 | 3.9 | 5.5 |
40CLZ-2A | 4 | 54 | 2900 | 3.5 | 3.2 | 5.5 |
40CLZ-4Z | 5 | 32 | 2900 | 3.5 | 1.6 | 2.2 |
40CLZ-4AZ | 5 | 22 | 2900 | 3.5 | 1.2 | 1.5 |
50CLZ-4Z | 20 | 50 | 2900 | 3.2 | 3.2 | 6.1 |
50CLZ-4AZ | 17 | 46 | 2900 | 3.2 | 3.2 | 5.0 |
50CLZ-4.5Z | 12.5 | 32 | 2900 | 3.2 | 2.5 | 4 |
50CLZ-4.5AZ | 10 | 28 | 2900 | 3.2 | 1.8 | 3 |
50CLZ-6 | 20 | 32 | 2900 | 3.2 | 3.2 | 4 |
50CLZ-6S | ||||||
50CLZ-6A | 17 | 28 | 2900 | 3.2 | 2.5 | 4 |
50CLZ-6AS | ||||||
50CLZ-7Z | 12.5 | 20 | 2900 | 3.5 | 1.7 | 3 |
50CLZ--7AZ | 10 | 17 | 2900 | 3.5 | 1.2 | 2.2 |
Zhuhai City Deyuan Import & Export Co., Ltd
Contact: Wenky
E-mail: sales10[at]deyuanmarine[dot]com
Skype: marinesales10
Tel: + 86 - 756 - 6302052
Fax: + 86 - 756 - 8305812
Mobile: +86 - 13798955776
Web: http://www.deyuanmarine.com
