Marine inflatable pneumatic Rubber Fender

Specifications

Pneumatic Rubber Fender:
1,good raw material.
2,color and design can be customized.
3,high quality.
4,long usage life.

Pneumatic Rubber Fender:

Marine inflatable pneumatic Rubber Fender:

Structure Type Of Marine Charged Rubber Dependable Ball
Type Of charged Rubber Dependable Ball
Marine charged rubber dependable ball without jacket of me belongs to the basic type; normally it is black or can be other color as per customer's demand. To avoid damage by protruding material near the surface, jacket can be provided as per user's need. The jacket has three types.
Tyre Network Type Rubber Network Type Cord Network Type
Tyre Network Type: tie several tyres on to the ball, two ends are tied on special flying ring which can turn flexibly. It is suitable for large size dependable ball.
Rubber Network Type: tie special rubber padder onto the ball, it can shrink or stretch freely when squeezing. It is suitable for medium size & small size dependable ball.
Cord Network Type: weave a net cover by nylon rope; tightly tie it on the ball. It is situ for small size dependable ball.

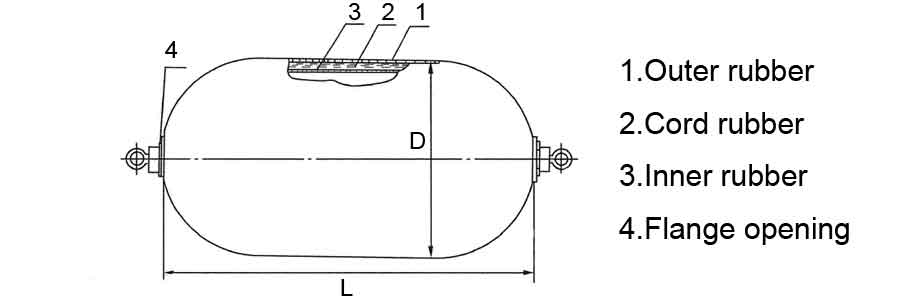

Structure:

Size:

No.	Size (Diameter x Length)	Initial pressure	Energy absorption	Reaction force
	mm x mm	MPa	KJ	KN
1	500 x 1000	0.05	6	64
2	600 x 1000	0.05	8	74
3	700 x 1500	0.05	17	137
4	1000 x 1500	0.05	32	182
5	1000 x 2000	0.05	45	257
6	1200 x 2000	0.05	63	297
7	1350 x 2500	0.05	102	427
8	1500 x 3000	0.05	153	579
9	1700 x 3000	0.05	191	639
10	2000 x 3500	0.05	308	875
11	2500 x 4000	0.05	663	1381
12	2500 x 5000	0.05	857	1835
13	2500 x 5500	0.05	943	2019
14	3000 x 5000	0.05	1050	2000
15	3000 x 6000	0.05	1312	2488
16	3300 x 4500	0.05	1175	1884
17	4500 x 9000	0.05	4752	5747
18	4500 x 12000	0.05	6473	7984

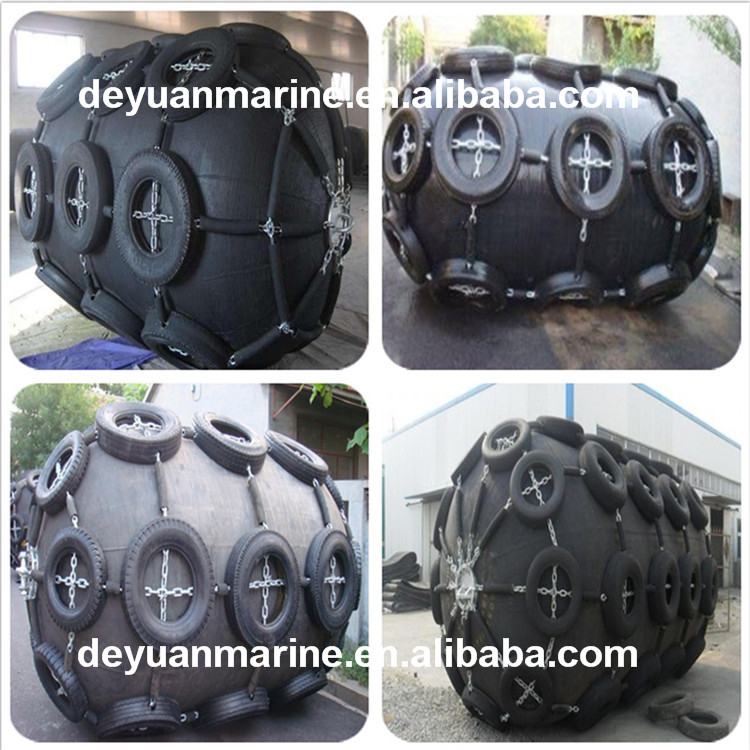

Photo:
