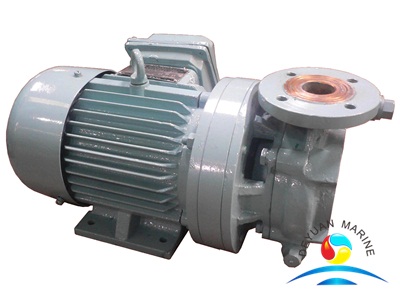

PWF series marine crushing pump

PWF series marine crushing pump

General description

PWF series marine pulverizing pump is the open impeller centrifugal discharge pump, which is used to pulverizeand transfer the soft foul in the sanitary sewage under 85c.The maximum dimeter of solid particle after circular pulverizing is within 5mm.It is also applicable to pulverize the coagulate of heavy oil under low temperature,in order to facilitate injection.



Model Explanation



• For the Model 0.5PWF-15B
• 0.5 multiply by 10 stand for flow rate 5M3/h
• P stand for Marine pump
• W stand for Domestic sewage
• F stand for Crushing
• 10 divided 100 stand for pressure head 0.1 mpa at rated displacement
• B stand for The second generation advanced type(Mechanical seal)





Performance parameter

Model	flow rate	pressure	Motor power	Inlet pipe diameter		outlet pipe diameter
	Q(m3/h)	(Mpa)	(kw)	(mm)		(mm)
0.5PWF-8	5	0.08	0.75	50		32
0.5PWF-10	5	0.1	1.1	50		32
0.5PWF-15B	5	0.15	1.1	50		32
0.5PWF-20B	5	0.2	1.5	50		32
0.5PWF-25B	5	0.25	2.2	50		32
0.5PWF-30B	5	0.3	3	50		32
1PWF-11	10	0.11	1.5	65		32
1PWF-20B	10	0.2	3	80		50
1PWF-25B	10	0.25	4	65		50
1PWF-30B	10	0.3	5.5	65		50
1.5PWF-20B	15	0.2	3	65		50
1.5PWF-25B	15	0.25	4	65		50
2PWF-11B	20	0.11	2.2	65		40
2PWF-20B	20	0.2	4	65		40
2PWF-30B	20	0.3	7.5	65		50
3PWF-10	30	0.1	4	65		50
