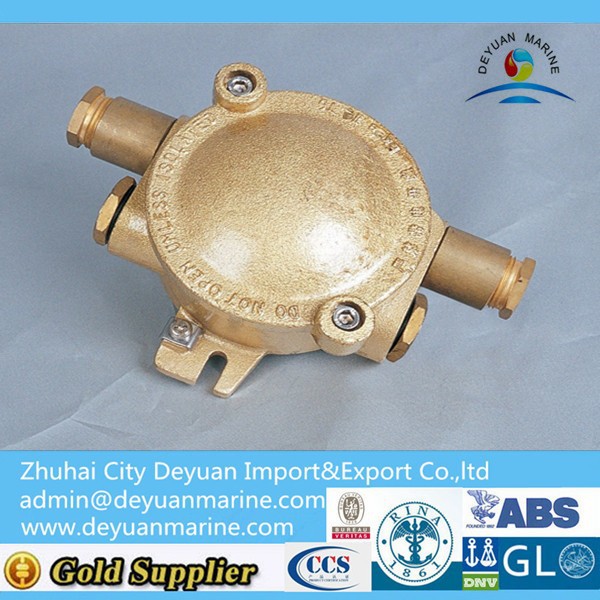

Petroleum Electric Appliances Explosion-proof Junction Box

Petroleum Electric Appliances Explosion-proof Junction Box



Application:



Fit for electric appliances connecting and circuit breaking in ships, sea petroleum, chemical industry site etc.



Products characteristic:



The shell adopts precision brass casting, it has the feature of fine sealing function and fine electric function.



Production authetication:



This series of products have passed the Examination of National Explosion proof Electrical Test Center, and was approved by “CCS”(China classification society).



Adopt standard:



IEC60079



Specification:



Code	510	510/2	510/3	510/4
Type	DCJXH202-1	DCJXH202-2	DCJXH202-3	DCJXH202-4
Voltage	500V/20A
Explosion proof mark	Exde II C T6
Protection class	IP56
Material	Brass
Size	134mm*109mm*60mm
Weight	1.4kg	1.4kg	1.5kg	1.5kg
