DEYUAN
China (Mainland)
DEYUAN
All kinds of marine fender
Chain and tyre
Black
Nude packaging,inflated it and piled it up.
About 15 to 30 days
Pneumatic Rubber Ball :
Features
1. High energy absorption , low reaction force.
2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area.
3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope.
4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship.
5. High standard of uniform quality in compression performance with no deterioration of the rubber.
6. Easy installation.
Application of Pneumatic Rubber Fender:
1.It is installed in the dock or port, it is used when ships berth.
2.It is installed on shipboard, it is used when berthing in the sea.
3.Other applications of Pneumatic Rubber Fender.
a.Can be used as a buoy.
b.Can be used for carrying goods.
c.Can be used as sealing material of pipes.
Specification
No. | Size (Diameter x Length) | Initial pressure | Energy absorption | Reaction force |
mm x mm | MPa | KJ | KN | |
1 | 500 x 1000 | 0.05 | 6 | 64 |
2 | 600 x 1000 | 0.05 | 8 | 74 |
3 | 700 x 1500 | 0.05 | 17 | 137 |
4 | 1000 x 1500 | 0.05 | 32 | 182 |
5 | 1000 x 2000 | 0.05 | 45 | 257 |
6 | 1200 x 2000 | 0.05 | 63 | 297 |
7 | 1350 x 2500 | 0.05 | 102 | 427 |
8 | 1500 x 3000 | 0.05 | 153 | 579 |
9 | 1700 x 3000 | 0.05 | 191 | 639 |
10 | 2000 x 3500 | 0.05 | 308 | 875 |
11 | 2500 x 4000 | 0.05 | 663 | 1381 |
12 | 2500 x 5000 | 0.05 | 857 | 1835 |
13 | 2500 x 5500 | 0.05 | 943 | 2019 |
14 | 3000 x 5000 | 0.05 | 1050 | 2000 |
15 | 3000 x 6000 | 0.05 | 1312 | 2488 |
16 | 3300 x 4500 | 0.05 | 1175 | 1884 |
17 | 4500 x 9000 | 0.05 | 4752 | 5747 |
18 | 4500 x 12000 | 0.05 | 6473 | 7984 |

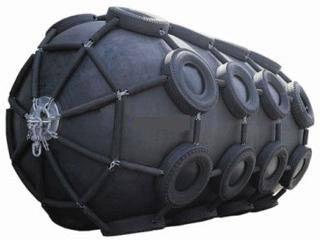

Photo:
Pneumatic Rubber Ball :
Features
1. High energy absorption , low reaction force.
2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area.
3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope.
4. Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship.
5. High standard of uniform quality in compression performance with no deterioration of the rubber.
6. Easy installation.
Application of Pneumatic Rubber Fender:
1.It is installed in the dock or port, it is used when ships berth.
2.It is installed on shipboard, it is used when berthing in the sea.
3.Other applications of Pneumatic Rubber Fender.
a.Can be used as a buoy.
b.Can be used for carrying goods.
c.Can be used as sealing material of pipes.
Specification
No. | Size (Diameter x Length) | Initial pressure | Energy absorption | Reaction force |
mm x mm | MPa | KJ | KN | |
1 | 500 x 1000 | 0.05 | 6 | 64 |
2 | 600 x 1000 | 0.05 | 8 | 74 |
3 | 700 x 1500 | 0.05 | 17 | 137 |
4 | 1000 x 1500 | 0.05 | 32 | 182 |
5 | 1000 x 2000 | 0.05 | 45 | 257 |
6 | 1200 x 2000 | 0.05 | 63 | 297 |
7 | 1350 x 2500 | 0.05 | 102 | 427 |
8 | 1500 x 3000 | 0.05 | 153 | 579 |
9 | 1700 x 3000 | 0.05 | 191 | 639 |
10 | 2000 x 3500 | 0.05 | 308 | 875 |
11 | 2500 x 4000 | 0.05 | 663 | 1381 |
12 | 2500 x 5000 | 0.05 | 857 | 1835 |
13 | 2500 x 5500 | 0.05 | 943 | 2019 |
14 | 3000 x 5000 | 0.05 | 1050 | 2000 |
15 | 3000 x 6000 | 0.05 | 1312 | 2488 |
16 | 3300 x 4500 | 0.05 | 1175 | 1884 |
17 | 4500 x 9000 | 0.05 | 4752 | 5747 |
18 | 4500 x 12000 | 0.05 | 6473 | 7984 |
Photo:
