Chongqing, China (Mainland)
Deyuan Marine
R3
Welded Chain
Marine Mooring
Alloy
Standard
Black Painted
Nude Packing or Wooden Case
15-30 days

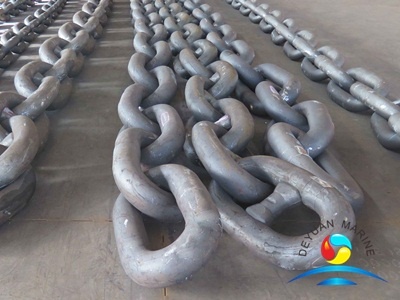

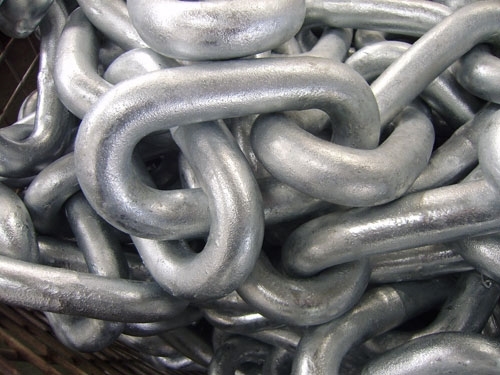

R3 Studless Link Offshore Mooring Chain
We supply all kinds of Mooring Chain from 42mm to 114mm for shipbulding,anchor chain replacement, all all chain can be supplied with Class Certificate, such as ABS, LR, BV, DNV, NK, GL, KR,IRS and CCS.
Shipment: Fast Delivery and Punctual Shipment.
Main Speciication
| Chain Diameter | R3 | R3s | R4 | |||||
| Stud, Studless Tension | Breaking Load | Studless Tension | Stud Tension | Breaking Load | Studless Tension | Stud Tension | Breaking Load | |
| 42 | 1119 | 1599 | 1248 | 1291 | 1786 | 1377 | 1549 | 1965 |
| 44 | 1223 | 1748 | 1364 | 1411 | 1952 | 1505 | 1693 | 2148 |
| 46 | 1331 | 1903 | 1485 | 1536 | 2124 | 1639 | 1843 | 2338 |
| 48 | 1444 | 2064 | 1610 | 1666 | 2304 | 1777 | 1999 | 2536 |
| 50 | 1560 | 2230 | 1740 | 1800 | 2490 | 1920 | 2160 | 2740 |
| 52 | 1681 | 2403 | 1875 | 1940 | 2683 | 2069 | 2327 | 2952 |
| 54 | 1806 | 2581 | 2014 | 2083 | 2882 | 2222 | 2500 | 3171 |
| 56 | 1934 | 2764 | 2157 | 2231 | 3086 | 2380 | 2677 | 3396 |
| 58 | 2066 | 2953 | 2304 | 2384 | 3297 | 2543 | 2860 | 3628 |
| 60 | 2202 | 3147 | 2456 | 2541 | 3514 | 2710 | 3049 | 3867 |
| 62 | 2342 | 3347 | 2612 | 2702 | 3737 | 2882 | 3242 | 4112 |
| 64 | 2485 | 3552 | 2771 | 2867 | 3966 | 3058 | 3440 | 4364 |
| 66 | 2632 | 3762 | 2935 | 3036 | 4200 | 3239 | 3644 | 4622 |
| 68 | 2782 | 3977 | 3103 | 3210 | 4440 | 3424 | 3852 | 4886 |
| 70 | 2936 | 4196 | 3274 | 3387 | 4686 | 3613 | 4065 | 5156 |
| 73 | 3173 | 4535 | 3539 | 3661 | 5064 | 3905 | 4393 | 5572 |
| 76 | 3417 | 4885 | 3812 | 3943 | 5454 | 4206 | 4731 | 6002 |
| 78 | 3584 | 5124 | 3998 | 4136 | 5721 | 4411 | 4963 | 6295 |
| 81 | 3841 | 5490 | 4284 | 4432 | 6130 | 4727 | 5318 | 6746 |
| 84 | 4104 | 5866 | 4578 | 4735 | 6550 | 5051 | 5682 | 7208 |
| 87 | 4374 | 6252 | 4879 | 5047 | 6981 | 5383 | 6056 | 7682 |
| 90 | 4651 | 6648 | 5187 | 5366 | 7423 | 5724 | 6439 | 8168 |
| 92 | 4838 | 6916 | 5397 | 5583 | 7723 | 5955 | 6699 | 8498 |
| 95 | 5125 | 7326 | 5717 | 5914 | 8180 | 6308 | 7096 | 9002 |
| 97 | 5320 | 7604 | 5934 | 6138 | 8491 | 6547 | 7366 | 9343 |
| 100 | 5616 | 8028 | 6264 | 6480 | 8964 | 6912 | 7776 | 9864 |
| 102 | 5817 | 8316 | 6489 | 6712 | 9285 | 7160 | 8055 | 10217 |
| 105 | 6123 | 8753 | 6830 | 7065 | 9774 | 7536 | 8478 | 10755 |
| 107 | 6330 | 9049 | 7061 | 7304 | 10104 | 7791 | 8765 | 11118 |
| 111 | 6751 | 9650 | 7530 | 7789 | 10775 | 8309 | 9347 | 11857 |
| 114 | 7072 | 10109 | 7888 | 8160 | 11288 | 8704 | 9792 | 12421 |
