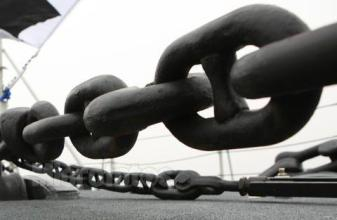

R4S Offshore Studless Link Mooring Chain

Inquire Add to Basket

  • Chongqing, China (Mainland)

  • Deyuan

  • R4S

  • Welded Chain

  • Marine Mooring

  • Alloy

  • Standard

  • Black Painted

  • Nude Packing or Wooden Case

  • 15-30 days

Specifications


1. Material: CM490, CM690
2. Size: 42mm to 114mm
3. R3,R3S,R4,R4S,R5
4. High Quality, Fast Delivery.
5. ABS, LR, BV, DNV, NK



R4S Studless Link Offshore Mooring Chain



We supply all kinds of  Mooring Chain from 42mm to 114mm for shipbulding,anchor chain replacement, all all chain can be supplied with Class Certificate, such as ABS, LR, BV, DNV, NK, GL, KR,IRS and CCS.



Shipment: Fast Delivery and Punctual Shipment.



Main Speciication



Chain Diameter R3 R3s R4
Stud, Studless Tension Breaking Load Studless Tension Stud Tension Breaking Load Studless Tension Stud Tension Breaking Load
42 1119 1599 1248 1291 1786 1377 1549 1965
44 1223 1748 1364 1411 1952 1505 1693 2148
46 1331 1903 1485 1536 2124 1639 1843 2338
48 1444 2064 1610 1666 2304 1777 1999 2536
50 1560 2230 1740 1800 2490 1920 2160 2740
52 1681 2403 1875 1940 2683 2069 2327 2952
54 1806 2581 2014 2083 2882 2222 2500 3171
56 1934 2764 2157 2231 3086 2380 2677 3396
58 2066 2953 2304 2384 3297 2543 2860 3628
60 2202 3147 2456 2541 3514 2710 3049 3867
62 2342 3347 2612 2702 3737 2882 3242 4112
64 2485 3552 2771 2867 3966 3058 3440 4364
66 2632 3762 2935 3036 4200 3239 3644 4622
68 2782 3977 3103 3210 4440 3424 3852 4886
70 2936 4196 3274 3387 4686 3613 4065 5156
73 3173 4535 3539 3661 5064 3905 4393 5572
76 3417 4885 3812 3943 5454 4206 4731 6002
78 3584 5124 3998 4136 5721 4411 4963 6295
81 3841 5490 4284 4432 6130 4727 5318 6746
84 4104 5866 4578 4735 6550 5051 5682 7208
87 4374 6252 4879 5047 6981 5383 6056 7682
90 4651 6648 5187 5366 7423 5724 6439 8168
92 4838 6916 5397 5583 7723 5955 6699 8498
95 5125 7326 5717 5914 8180 6308 7096 9002
97 5320 7604 5934 6138 8491 6547 7366 9343
100 5616 8028 6264 6480 8964 6912 7776 9864
102 5817 8316 6489 6712 9285 7160 8055 10217
105 6123 8753 6830 7065 9774 7536 8478 10755
107 6330 9049 7061 7304 10104 7791 8765 11118
111 6751 9650 7530 7789 10775 8309 9347 11857
114 7072 10109 7888 8160 11288 8704 9792 12421
