R4S Studless Link Mooring Chain

Specifications

1. Material: CM490, CM690
2. Size: 42mm to 114mm
3. R3,R3S,R4,R4S,R5
4. High Quality, Fast Delivery.
5. ABS, LR, BV, DNV, NK

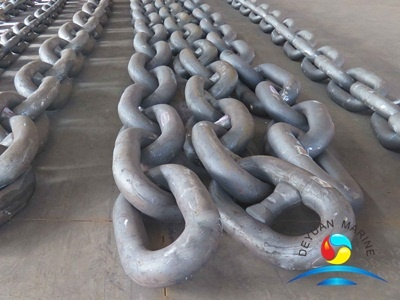

R4S Studless Link Offshore Mooring Chain

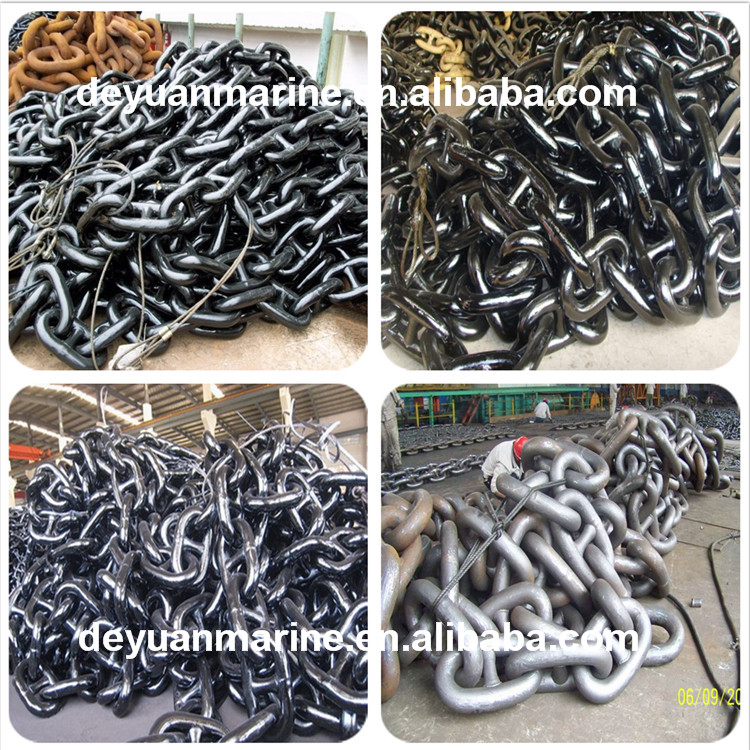

We supply all kinds of  Mooring Chain from 42mm to 114mm for shipbulding,anchor chain replacement, all all chain can be supplied with Class Certificate, such as ABS, LR, BV, DNV, NK, GL, KR,IRS and CCS.



Shipment: Fast Delivery and Punctual Shipment.

Main Speciication



Chain Diameter	R3		R3s			R4
	Stud, Studless Tension	Breaking Load	Studless Tension	Stud Tension	Breaking Load	Studless Tension	Stud Tension	Breaking Load
42	1119	1599	1248	1291	1786	1377	1549	1965
44	1223	1748	1364	1411	1952	1505	1693	2148
46	1331	1903	1485	1536	2124	1639	1843	2338
48	1444	2064	1610	1666	2304	1777	1999	2536
50	1560	2230	1740	1800	2490	1920	2160	2740
52	1681	2403	1875	1940	2683	2069	2327	2952
54	1806	2581	2014	2083	2882	2222	2500	3171
56	1934	2764	2157	2231	3086	2380	2677	3396
58	2066	2953	2304	2384	3297	2543	2860	3628
60	2202	3147	2456	2541	3514	2710	3049	3867
62	2342	3347	2612	2702	3737	2882	3242	4112
64	2485	3552	2771	2867	3966	3058	3440	4364
66	2632	3762	2935	3036	4200	3239	3644	4622
68	2782	3977	3103	3210	4440	3424	3852	4886
70	2936	4196	3274	3387	4686	3613	4065	5156
73	3173	4535	3539	3661	5064	3905	4393	5572
76	3417	4885	3812	3943	5454	4206	4731	6002
78	3584	5124	3998	4136	5721	4411	4963	6295
81	3841	5490	4284	4432	6130	4727	5318	6746
84	4104	5866	4578	4735	6550	5051	5682	7208
87	4374	6252	4879	5047	6981	5383	6056	7682
90	4651	6648	5187	5366	7423	5724	6439	8168
92	4838	6916	5397	5583	7723	5955	6699	8498
95	5125	7326	5717	5914	8180	6308	7096	9002
97	5320	7604	5934	6138	8491	6547	7366	9343
100	5616	8028	6264	6480	8964	6912	7776	9864
102	5817	8316	6489	6712	9285	7160	8055	10217
105	6123	8753	6830	7065	9774	7536	8478	10755
107	6330	9049	7061	7304	10104	7791	8765	11118
111	6751	9650	7530	7789	10775	8309	9347	11857
114	7072	10109	7888	8160	11288	8704	9792	12421
