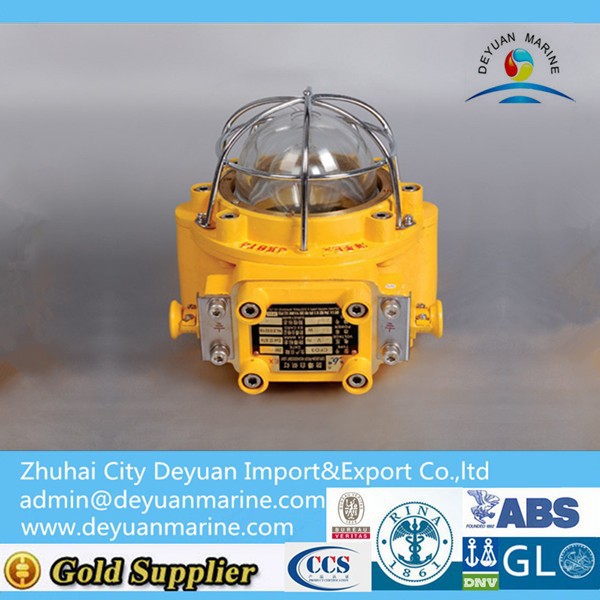

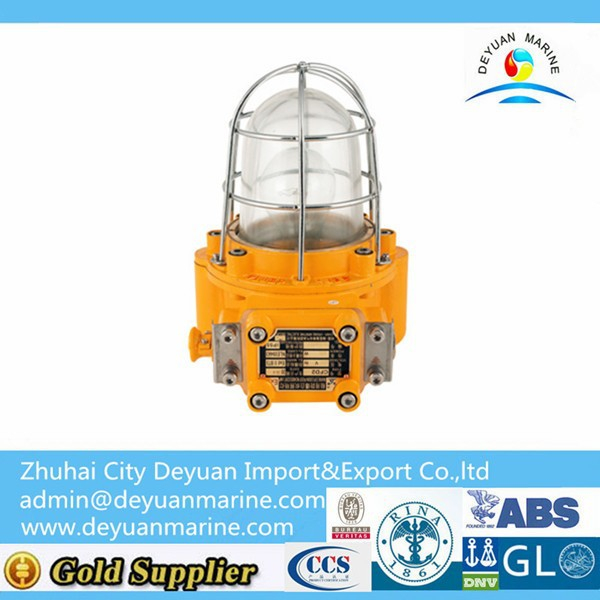

Ship CFD Incandescent Explosion-proof Light

Ship CFD Incandescent Explosion-proof Lamp

The scope of application:

It can be used safety and reliable in the place with explosive matters IIA,IAAB.the temperature group is T1-T4 in cabin and outdoor place.

Products characteristic:

1.the shell is made of good quality brass foundry,toughened glass lampshade,copper material net shield.

2.The filler has two kind,one is tube screw type is G3/4.another one is bugle-type.

Adopt standard:

Conform to national standard GB12045,the technical condition of marine explosion-proof light.

Specification:

Type	Explosion-proof mark	Voltage	Lamp holder	Power	Cable outside Diameter	Protection class	Illumiant	Weight	Material
CFD2a	Exd II B T3	220V	E27	200W	Φ11-Φ14	IP55	Incandescent	19kg	brass
CFD2b	Exd II B T3	220V		125W			Self-ballast high-pressure mercury lamp	19kg
CFD3	Exd II B T4	24V 110V 220V		25W 40W/60W 40W/60W/100W			Incandescent	13.5kg
